    XLPE Insulated Aluminium Conductor Cable Steel Wire Armoured PVC Sheath 8.7KV 15kV

    Ask Lasest Price
    Brand Name : Zhongdong
    Certification : ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
    Price : To be negotiated
    Payment Terms : ,L/C,T/T
    Supply Ability : 100KM/Week
    Delivery Time : 7-30 days based on different qty
    • Product Details
    • Company Profile

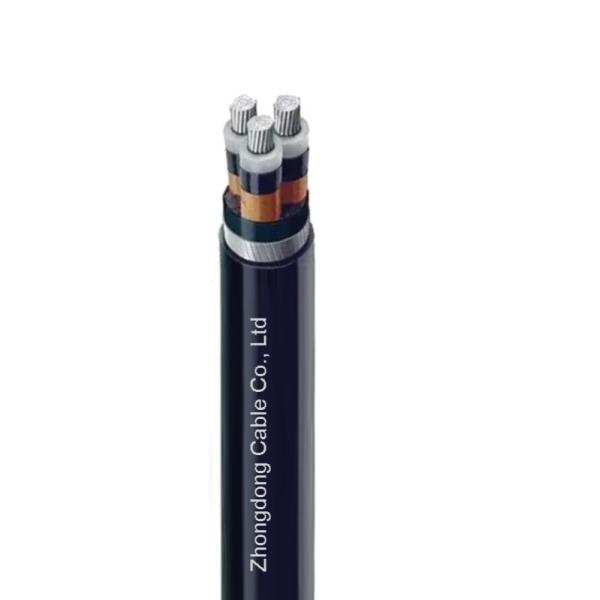

    XLPE Insulated Aluminium Conductor Cable Steel Wire Armoured PVC Sheath 8.7KV 15kV

    8.7/15kV Aluminium Conductor Cable Steel Wire Armoured XLPE Insulated PVC Sheath Cable



    Application



    Distribution and signalling power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions requiring increased electric protection and protection against mechanical damages. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants and for connection of signalling devices in industry, traffic and similar. Concentric conductor can be used as neutral, protective or earth connection, and if there is a danger of damages caused by digging, it acts as protection against contact voltage in case of rough insulation damage.




    Construction



    1. Conductor
    2. Conductor Shiel
    3. Insulation
    4. Metal Shield Layer
    5. Filler
    6. Binder Tape
    7. Armouring
    8. Outer sheath


    Laying Method


    Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.




    Specification



    Specs
    mm²

    Conductor diameter
    mm

    Outer thickness of insulation
    ±1.0mm

    Approx outer diameter of cable
    mm

    Approx cable weight
    kg/km

    Specs
    mm²

    Conductor diameter
    mm

    Outer thickness of insulation
    ±1.0mm

    Approxi outer diameter of cable
    mm

    Approx cable weight
    kg/km

    1×25

    6.0±0.1

    12.2

    21.1

    604

    3×25

    6.0±0.1

    12.2

    39.0

    1909

    1×35

    6.6±0.2

    12.8

    21.7

    670

    3×35

    6.6±0.2

    12.8

    41.6

    2167

    1×50

    7.6±0.2

    13.8

    22.9

    759

    3×50

    7.6±0.2

    13.8

    44.6

    2485

    1×70

    9.2±0.2

    15.4

    24.5

    869

    3×70

    9.2±0.2

    15.4

    48.2

    2899

    1×95

    10.9±0.2

    17.1

    26.4

    993

    3×95

    10.9±0.2

    17.1

    51.6

    3338

    1×120

    12.2±0.2

    18.4

    27.7

    1110

    3×120

    12.2±0.2

    18.4

    54.9

    3802

    1×150

    13.6±0.2

    19.8

    29.2

    1253

    3×150

    13.6±0.2

    19.8

    58.0

    4292

    1×185

    15.2±0.2

    21.4

    30.8

    1412

    3×185

    15.2±0.2

    21.4

    61.9

    4861

    1×240

    17.4±0.2

    23.8

    33.4

    1669

    3×240

    17.4±0.2

    23.8

    67.5

    5777

    1×300

    19.5±0.2

    26.3

    37.5

    2306

    3×300

    19.5±0.2

    26.3

    73.1

    6782

    1×400

    22.0±0.2

    29.2

    40.6

    2758

    3×400

    22.0±0.2

    29.2

    82.7

    9086

    1×500

    24.8±0.2

    33.2

    45.0

    3296

    3×500

    24.8±0.2

    332

    90.4

    10871

    1×630

    28.2±0.2

    366

    48.7

    3875

    3×630

    282±0.2

    36.6

    98.7

    12870

    1×800

    34.0±0.2

    42.4

    54.7

    4663




    FAQ


    Q1. How can I place order?
    A: You can contact us by email about your order details, or place order online.

    Q2. Does your company provide OEM&ODM services?
    A: Of course, we can produce cables by your samples or technical drawings.

    Q3. Does your company test all your goods before delivery?
    A: Yes, we have 100% test before delivery.

    Q4: Are you a cable and wire manufacturer?
    --Yes, our company is an integrated set of industry and trade company.

    Q5: Can you offer a discount on cables?
    --Sure, the price is negotiable. We will definitely give a discount based on your annual order.

    Q6: Can you offer free samples?
    --Of course, according to your order quantity, we'd like to provide free sample.

    Q7. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. Trade terms of EXW, FOB, CFR, CIF, DDU are available.
