    PVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low Voltage

    Ask Lasest Price
    Brand Name : Zhongdong
    Certification : ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
    Price : To be negotiated
    Payment Terms : ,L/C,T/T
    Supply Ability : 100KM/Week
    Delivery Time : 7-30 days based on different qty
    • Product Details
    • Company Profile

    PVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low Voltage

    PVC Insulated AWA Armoured Electrical Cable Three Core Control Cable



    Application

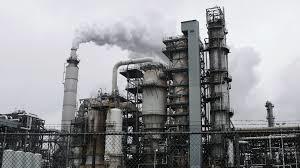

    PVC-armored control cables are commonly used in environments requiring mechanical protection and resistance to harsh conditions, such as Factories, plants, and automation systems where cables are exposed to abrasion, impacts, or vibrations,Chemical plants, oil refineries, and mining sites needing corrosion and moisture resistance.



    Construction


    1. Conductor: Circular, solid, compacted or sector shaped stranded Coppe
    2. Insulation:PVC
    3. Filler:Non-hygroscopic material
    4. Binder tape: Non-hygroscopic material
    5. Amour: steel tape
    6. Sheath: PVC






    Description


    1. Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
    2. Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
    3. Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
    4. Bending Radius:16D for armored cable



    Product range



    Nominal cross section

    Nominal insulation thickness

    Nominal sheath thickness

    Average outside diameter

    Max. DC resistance of conductor at 20 ℃

    Approx. weight of cable

    mm2

    mm

    mm

    mm

    Ω/km

    kg/km

    Limit

    Caps

    3×0.75

    0.6

    1.2

    7.1

    8.5

    24.5

    78.3

    3×1.0

    0.6

    1.2

    7.4

    8.9

    18.1

    88.5

    3×1.5

    0.7

    1.2

    8.3

    10

    12.1

    113.7

    3×2.5

    0.8

    1.2

    9.5

    11.5

    7.41

    156.9

    3×4

    0.8

    1.2

    10.5

    12.7

    4.61

    208.5

    3×6

    0.8

    1.5

    11.5

    13.9

    3.08

    300.4

    3×10

    1

    1.7

    15.2

    18.4

    1.83

    487.4

    4×0.75

    0.6

    1.2

    7.6

    9.2

    24.5

    93.2
