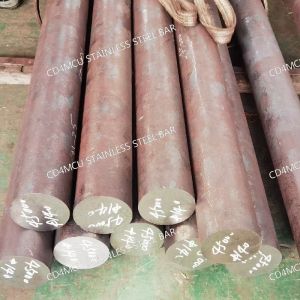

    CD4MCU Stainless Steel Round Bars Superior Durability Wear Resistance

    Ask Lasest Price
    Brand Name : Delta
    Model Number : CD4MCU
    Certification : ISO 9001
    Price : 4000 - 5500 USD/Ton
    Payment Terms : T/T, Western Union
    Supply Ability : 50 Ton per Month
    Delivery Time : 5 - 10 days
    • Product Details
    • Company Profile

    CD4MCU Stainless Steel Round Bars Superior Durability Wear Resistance

    CD4MCU Stainless Steel Round Bars Superior Durability & Wear Resistance


    Products Specification


    Products NameStainless Steel Round Bar
    GradeCD4MCU
    Products Diameter Rangeφ10mm - φ350mm
    Length6.1m/pcs or cutting any length as request
    SurfacePickling finishing, bright finishing
    Other Grade

    304,304L,309S,310S,310H,316L,316Ti,316H,317L,321,329,347,410,420,

    430F,431,440A/B/C,2205,2507,904l,254SMO,253MA,CD4MCU,XM-19,17-4PH,15-5PH,17-7PH,C276,600,601,625,718,800,800H,825,926.etc

    StandardASTM JIS,GB,DIN EN
    ServiceCutting
    Other ShapeSquare , Flat, Hexagonal, Round.etc
    Loading PortShanghai Port
    MOQ500 kgs

    CD4MCu is an Fe-Cr-Ni-Cu-Mo alloy with a duplex structure of ferrite and austenite. Moderately high strength and hardness are combined with good ductility and impact properties, resulting in an alloy with superior resistance to abrasion or erosion-corrosion.
    CD4MCu provides significantly better stress/corrosive cracking resistance, and less pitting than standard stainless steel. It has a higher strength and thus is more durable.
    CD4MCu combines outstanding corrosion resistance with nearly twice the strength of many stainless types. It can be age-hardened to increase its Brinell Hardness Number (BHN). This alloy has proven useful in sulphuric acid environments and seawater applications. It resists abrasive wear and galling, can be readily machined, and is weldable without preheating. This duplex alloy is also known as MTEK 29M.

    CD4MCu Duplex Stainless Steel General Information

    • Cast Alloy Designation:CD4MCu
    • Similar designation:DUPLEX 1A
    • Alloy Family:High Alloy / Stainless Steel
    • UNS:J93370
    • ASTM Standard(s):A890
    • Wrought:255
    • Weldability:Good
    • Castability:Good
    • Machinability rating:Good

    CD4MCu Duplex Stainless Steel Chemical Composition

    ElementContent (%)
    Chromium, Cr24.5-26.5
    Manganese, Mn1-3
    Nickel, Ni4.75-6
    Silicon, Si1 max
    Nitrogen, N0.20-0.25
    Copper, Cu2.75-3.25
    Molybdenum, Mo1.75-2.25
    Phosphorous, P0.040 max
    Carbon, C0.040 max
    Sulfur, S0.030 max
    Iron, FeBalance

    CD4MCu Duplex Stainless Steel Mechanical Properties

    PropertiesMetricImperial
    Tensile strength (min)690 MPa100 ksi
    Yield strength (min)485 MPa70 ksi
    Elongation (min)16%16%
    Hardness, Brinell (max)290290

    CD4MCu Duplex Stainless Steel Applications

    Superior corrosion and abrasion ability make CD4MCu ideal for varied applications in these industries:
    • Centrifuge and dewatering equipment
    • Couplings
    • Heat exchangers,
    • Ffshore piping systems
    • Paper rolls
    • Pulp digesters
    • Pump and valve components
    • Pressure vessels
    • Sleeves
    • Flanges

    CD4MCu Duplex Stainless Steel Benefits

    • Corrosion and pitting resistance
    • Better for abrasive applications
    • Higher strength than standard stainless steel
    • Improved ductility and weldability
    • Better resistance to embrittlement

    Available Sizes And Specifications

    CD4MCu stainless steel pipe sizes and specifications
    GradeCD4MCu
    SpecificationEN, DIN, JIS, ASTM, BS, ASME, AISI, ISO
    StandardASTM A276/ASME SA276, ASTM A479/ASME SA479 & ASTM A164/ASME SA164 .
    Stainless steel round BarDiameter: 2mm - 600mm
    Stainless steel bright BarDiameter: 2mm - 600mm
    Stainless steel hex BarDimension: 6mm - 80mm
    Stainless steel square barDimension: 3.0 - 180mm
    Stainless steel flat barThickness: 0.5mm - 200mm, Width: 1.5mm - 250 mm
    Stainless steel angle baras requirements
    LengthNormally 6m, or produce as requirements
    SurfaceBlack, Bright. Peeled and Polished, Solution annealed.
    Delivery conditioncold drawn, hot rolled, forged, grinding, centerless grinding
    ToleranceH8, H9, H10, H11, H12, H13,K9, K10, K11, K12 or as per clients’ requirements
