Digital Full Spectrum Water Quality Multi Parameter Sensor COD
Nitrate Nitrogen Turbidity TOC BOD UV254 Color Sensor
>>Overview

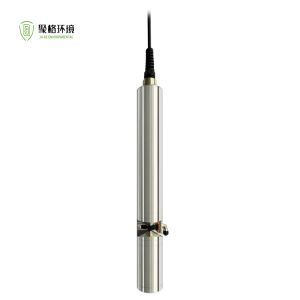

The AG-600 digital full-spectrum multi-parameter sensor operates
based on the Lambert-Beer absorption law. It employs a miniature
xenon flash lamp to irradiate water samples, where the absorbed
light intensity correlates with measured components. Designed with
digital and intelligent sensor principles, it automatically
compensates for measurement deviations caused by light source
fluctuations, component aging, and temperature variations.
Featuring standardized digital signal output capability, this
sensor enables direct networking and system integration without
requiring additional controllers.
>>Feature
● Detection wavelength: 190 nm to 760 nm
● Corrosion-resistant housing: S316L stainless steel material
● No chemical reagents required, zero secondary pollution, rapid
measurement
● Air purge or automatic electric brush cleaning: Prevents
measurement light path blockage by deposits, enabling
maintenance-free operation
● Long-life xenon flash lamp: Service life exceeding 10 years
● Built-in light intensity reference detection: Ensures excellent
data stability
● Data analysis software: Features standardization, logging,
analysis, and diagnostic capabilities
● RS485 output: Strong anti-noise and anti-interference
performance, delivering enhanced data stability
● Calibration log storage: Plug-and-play design; no initial
calibration required upon first use
● User-friendly operation: Supports online software upgrades
>>Technical Parameter
Model | AG-600 |
Parameter | COD, Nitrate nitrogen, Turbidity,TOC,BOD,UV254, Color and
temperature (OEM TSS, Nitrite Nitrogen, etc.) |
Principle | Absorption method |
Range | Path | 2mm | 10mm | 20mm |
COD(mg/L) | 0～2000 | 0～400 | 0～200 |
Nitrate nitrogen(mg/L) | 0 ～50 | 0 ～10 | 0 ～5 |
turbidity(NTU) | 0～800 | 0～200 | 0 ～100 |
SAC254(abs/m) | 0～750 | 0 ～150 | 0～75 |
TOC(mg/L) | 0～800 | 0 ～160 | 0～80 |
BOD(mg/L) | 0 ～1500 | 0 ～300 | 0 ～150 |
Color(Hazen) | 0 ～5000 | 0 ～1000 | 0 ～500 |
Temperature(℃) | 0~50 |
Accuracy | COD,TOC, BOD,Nitrate nitrogen:≤±3%；Turbidity,Color:≤±5% |
Repeatability | COD,TOC, BOD,Nitrate nitrogen:≤2%；Turbidity,Color:≤3% |
Temperature Range | (0～50)℃ |
Protection level | IP68,under water 10m |
Cleaning | Mechanical brush automatic cleaning+air blowing |
Communication | RS485(Modbus RTU),Maximum baud rate 115200 bps |
Power | (12～28)V DC /2W(In non cleaning mode) |
Material | S316L |
Size/weight | 2500g/φ50mm ×L400mm |
