    Cems Integrated Humidity Oxygen Monitoring System Online Flue Gas Analyzer

    Ask Lasest Price
    Brand Name : JUGE
    Model Number : AG-SY07
    Certification : IOS9001, CE
    Price : USD1000-5000
    Delivery Time : 5-8 working days
    Payment Terms : Online order,T/T
    Supply Ability : 100 Unit/Week
    • Product Details
    • Company Profile

    Cems Integrated Humidity Oxygen Monitoring System Online Flue Gas Analyzer

    Cems Integrated Humidity Oxygen Monitoring System Flue Gas Analyzer


    >>Overview

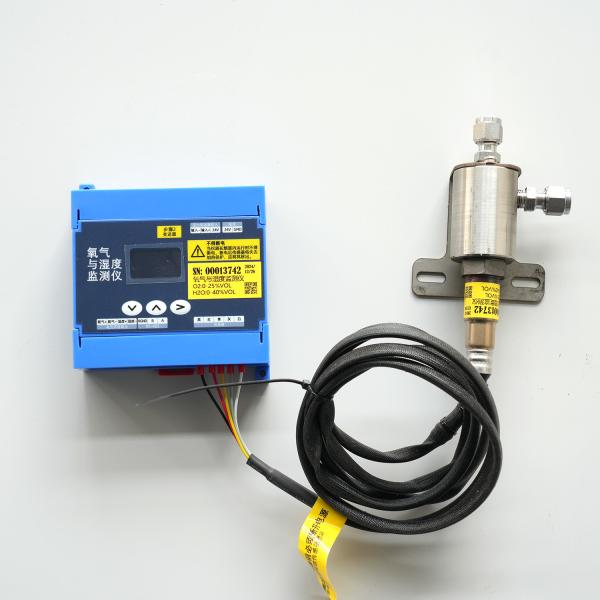

    The AG-SY07 Integrated Humidity-Oxygen Monitoring System adopts internationally advanced high-temperature resistive-capacitive humidity sensor technology. With its unique temperature-resistant design, it enables accurate long-term online measurement of gas oxygen and humidity in high-temperature (200°C) and high-humidity environments. Characterized by high-temperature resistance, high measurement precision, weak acid tolerance, strong anti-interference capability, rapid response, and stable reliability, it is widely used for oxygen and humidity analysis in high-temperature environments before and after desulfurization and denitrification processes in flue gases from coal-fired power plants, chemical plants, and steel mills.

    >>Feature
    1. Capable of long-term operation in high-temperature environments up to 200°C;
    2. Imported-brand sensors ensure extended analyzer service life;
    3. Probe fabricated with specialized materials for enhanced corrosion resistance;
    4. High ingress protection (IP67) enclosure design for harsh outdoor conditions;
    5. Precision automatic temperature compensation eliminates ambient temperature effects;
    6. Simple operation, extended lifespan, and low-maintenance design;
    7. Volume percentage output compliant with detection standards.
    >>Main technical parameters
    PrincipleIon-flow humidity sensor
    RangeHumidity: 0-40% VOL
    O2: 0-2%
    Accuracy±1%FS @100ºC
    Stability±1%FS/7d
    Response timeT90 <30s after full preheating
    Power Supply220VAC ± 10%, 50Hz, with a maximum of 20W
    Sensor lifeNormal use for more than 2 years
    Transmitter lifeNormal use for more than 5 years
    Output1.Modbus, 1 route, isolated 1.5KV, RS485-2W (module required)
    2. Three-line system 4-20 mA, 1 or 2 road, isolated 1.5KV, the load resistance is less than 500 ohms
    Oxygen pressureNormal pressure ± 10%
    Sample gas flow rate1~5L/min
    Working ambient temperatureTransmitter: -10~50ºC, no condensation
    Sensor: 0~200ºC (except for cable)
    Storage and transportation environment-10 - 50ºC, <90% RH, with no condensation
    When the storage and transportation environment is less than 5ºC, the transmitter should be placed in room temperature for more than 4 hours before use
    Background gas componentsNo combustible gas, no corrosive gas
