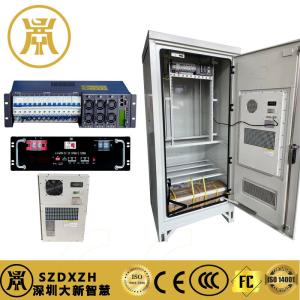

    40U Outdoor 19 Rack Cabinet Weatherproof Outdoor Enclosure IP55 With Cooling And Power System

    Ask Lasest Price
    Brand Name : Daxin
    Model Number : ODC-210909C2T
    Certification : ISO9001,CE,3C,FCC,TLC,IP55
    Payment Terms : T/TD/A,Western Union,Paypal,etc
    Supply Ability : 3000pcs/month
    Delivery Time : 20-40 days
    Price : Negotiation
    • Product Details
    • Company Profile

    40U Outdoor 19 Rack Cabinet Weatherproof Outdoor Enclosure IP55 With Cooling And Power System

    Weatherproof Outdoor Power Cabinet 19inch Rack Integrated With Cooling And Power System


    Product Description:


    Our Outdoor Power Cabinet features DC48V LED lamps for reliable illumination, ideal for outdoor use. With IP55 protection, it resists dust and water, while the 3.0mm jacket ensures durability. It supports batteries up to 550×125×320mm and includes a secure anti-theft three-point lock. Perfect for outdoor power needs, it guarantees safety, weather resistance, and theft protection in a compact, sturdy design.

    Features:

    • OEM/ODM acceptable
    • Battery Shelf No: One Battery Shelf
    • Cabinet Cooling: Air condtioner And Fans
    • Cabinet Lock: Anti-theft Three Point Lock
    • Layout: 2 Compartments
    • Internal Size: 40U
    • Weather Resistant

    Technical Parameters:

    Name/DescriptionSpecification/ModelParameter
    Outdoor integrated
    power cabinet
    900*900*2150A.Cabinet dimensions:W×DxH900*900*2150mm;
    Internal dimensions:W×DxH800*800*1800mm
    B.Cabinet type:1 unit,1 compartment,front door,floor mounted
    C.Cabinet material:1.5mm galvanized sheet;
    D.Thermal insulation performance:thermal conductivity<0.472W/(m2.k);
    E.Upper equipment rack:19 inch rack,22U,3 pairs of support bars,1 pallet;The lower two battery racks can accommodate up to 2 sets of 48200AH lead-acid batteries;
    F.Cabinet base:100mm high,2.0mm thick;
    G.Entry method:Bottom in and bottom out with a diameter of 50*4;
    H.Anti theft design:embedded doors,embedded links,point type anti-theft locks;
    I.Protection evel:IP65;
    J.Color:RAL7035,professional outdoor powder coating;
    K.Induding grounding copper bar,LED light,door magnetic switch
    Embedded switch
    power supply 200A
    ET-PS48200Z-6U19 inches,embedded plug-in frame 6U high;AC input 380V,DC output 48V;
    Equipped wth 350A rectifier modules and 1 monitoring and management module;
    Capable of battery charging management;
    Distribution section:AC input:air switch DZ47-63/4 C6363A/4P*1;Three phase ACC-
    level lightning arrester 20-40KA;Communication output:Air switch DZ47-63/2 C32
    32A/2P*1;Ground wire terminal*1;DC C-evel lightning arrester 20-40KA 1P*1;DC
    output:One power outage:DZ47-63/1 C6363A/1P*3,DZ47-63/1 C3232A/1P*2;
    Secondary power offDZ47-63/1 C6363A/1P*2,DZ47-63/1 C1616A/1P*2;Battery
    empty switch:DZ47-125/1125A/1P*2.
    Distribution unit
    (optional/customizable)
    3U19 inch 3U high embedded plug-in frame,AC380V input,63A/4P×2(AC input,oil
    engine input+mechanical interlock plate),three-phase B-cass lightning arrester ×1,
    63A/3P×1,32A/1P×2,16A/1P×2,10A/1P×1,6A/1P×1,three hole
    maintenance socket ×1,ground row×1,zero row×1.
    Communication air
    conditioning
    DXAC1500W220VAC 220V, 50/60Hz, 1500W

    Applications:


    The ODC-210909C2T Outdoor Power Cabinet is ideal for telecom (cell towers, transmitters), transportation (traffic lights, streetlights), renewable energy (solar/wind storage), and outdoor events (stages, lighting). Its IP55-rated, weatherproof design protects equipment in harsh conditions.


    More detail:


    Outdoor power cabinet, outdoor power enclosure, outdoor telecom enclosure
