    Precision CNC Valve Tapping & Drilling Machine Multi-Valve Processing Solution

    Ask Lasest Price
    Brand Name : Vicord
    Model Number : YCZG300 HT
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 30 set per month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    Precision CNC Valve Tapping & Drilling Machine Multi-Valve Processing Solution

    Precision CNC Valve Tapping & Drilling Machine | Multi-Valve Processing Solution
    CNC Tapping and Drilling Machine for Ball Valves, Gate Valves & Butterfly Valves
    Product Description
    High-efficiency CNC tapping and drilling machine specially designed for ball valves, gate valves & check valves. ±0.01mm accuracy, and multi-function integration for valve manufacturing."
    Product Overview
    Our advanced CNC Tapping and Drilling Machine revolutionizes valve manufacturing by combining drilling, threading, and positioning operations in a single setup. Engineered for cast iron, stainless steel, and alloy valves, this system delivers:
    1. 60% faster production vs conventional methods
    2. ±0.01mm positional accuracy (critical for valve sealing)
    3.Fully automated tool changing and positioning
    Key Features & Technical Specifications
    Feature Benefit Technical Data
    Dual-Function Processing Complete drilling & tapping in one cycle 16-station automatic tool changer
    Precision Positioning Ensures leak-proof valve assembly PLC control + optical positioning
    Multi-Valve Compatibility Handles ball/gate/check/butterfly valves Max workpiece: Ø800mm x L1500mm
    Heavy-Duty Construction Stable machining for cast iron valves cast iron bed with vibration damping
    Industry Applications

    ProjectMachine tool specificationsYCZG200HTYCZG300HT
    Technical specificationsMaximum drilling center distance (mm)230400
    Maximum processing size from intermediate flange to center (mm)300400
    Minimum processing size from intermediate flange to center (mm)150150
    Power box stroke (mm)180320
    Mobile worktable stroke (mm)460460
    Processing accuracyDrill bit connection methodER ChuckER chuck
    Position accuracy (mm)<0.2<0.2
    Spindle driveTransmission type (gear speed change)12.512.5
    Spindle speed range (ππmin)400/100300/100
    Spindle motor modelYE2-132M-6-2.2KWYE2-132M-6-3KW
    CNC control systemPLC
    Feed formHydraulic transmisslon/Cyinder transmisslon
    Machine shapeMachine tool dimensions (length x width x height mm)2300X1700X17002500X1900X1800
    Machine weightMachine tool weight (kg)11001800

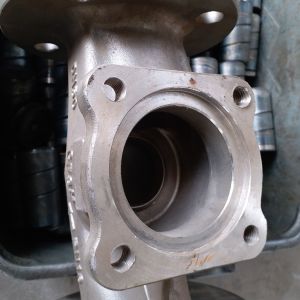

    Processed Products



    Machine Picture
