548-8317 5488317 CA5248317 538-9703 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original

Buy cheap 548-8317 5488317 CA5248317 538-9703 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original from wholesalers

548-8317 5488317 CA5248317 538-9703 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original

Ask Lasest Price
Brand Name :	Caterpillar
Model Number :	548-8317 5488317 CA5248317 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original
Certification :	CE,ISO
Price :	Negotiable price
Payment Terms :	Western Union,T/T
Supply Ability :	300pcs /Month
Delivery Time :	5-8 Weekdays

Add to Cart

Product Details
Company Profile

548-8317 5488317 CA5248317 538-9703 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original

548-8317 5488317 CA5248317 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original

PRODUCT DESCRIPTION
Model: 548-8317 5488317 CA5248317 for CAT 326D2 L 335F L Excavator parts Hydraulic Main Pump Hydraulic pump Assembly Piston pump Aftermarket Original	category: Hydraulic PUMP
Brand: Caterpillar	Place of Origin:Other Country
Condition: Original & Oem	Warranty: 12 months
MOQ: 1 pcs	Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard	Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order)	Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
Guarantee: We will check and send detailed pictures to buyers for confirmation

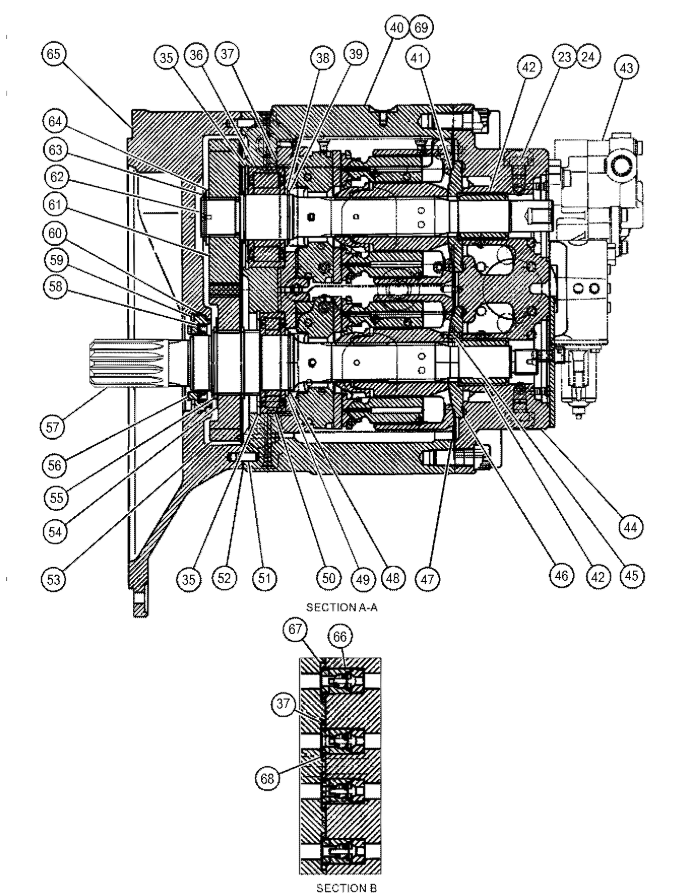

Pos.	Part No	Qty	Parts name	Comments
1	8T-4195 M	[11]	BOLT (M10X1.5X30-MM)
2	7X-7729	[11]	WASHER (11X25X3-MM THK)
3	339-6855 Y	[1]	COUPLING GP-PUMP
4	524-8317 Y	[1]	PUMP GP-MAIN HYDRAULIC (DOUBLE PISTON)

Pos.	Part No	Qty	Parts name	Comments
1	5I-8774 M	[2]	SETSCREW (M16X2X39-MM)
2	098-5747 M	[2]	NUT (M16X2-THD)
3	8T-1158 M	[8]	BOLT-SOCKET HEAD (M8X1.25X20-MM)
4	541-3306	[2]	COVER
5	541-3308	[2]	STOPPER
6	232-4114	[2]	RING
7	249-6659	[2]	SEAL-O-RING
8	541-3309	[2]	PISTON
9	541-3326	[2]	PIN AS
10	5I-8772	[2]	EYEBOLT
11	206-9295	[2]	SEAL-O-RING
12	095-1784	[2]	RING-BACKUP
13	541-3307	[2]	STOPPER
14	541-3303 M	[2]	NUT (M16X2-THD)
15	541-3300 M	[2]	SETSCREW (M16X2X55-MM)
16	219-6915 M	[1]	BOLT (M16X2X95-MM)
17	8T-0273 M	[12]	BOLT-SOCKET HEAD (M12X1.75X40-MM)
18	295-9517	[2]	DOWEL
19	541-3327	[1]	VALVE AS-SOLENOID (PISTON PUMP)
20	169-7978	[1]	COVER
21	105-3488 M	[2]	BOLT-SOCKET HEAD (M10X1.5X16-MM)
22	246-9867	[1]	SEAL-O-RING
23	110-5525	[6]	PLUG
24	214-7568	[6]	SEAL-O-RING
25	541-3316	[18]	SPRING
26	541-3333	[2]	PISTON AS
27	541-3318	[2]	PLATE-RETAINER
28	541-3312	[2]	PLATE
29	541-3328	[2]	SWASHPLATE AS
30	541-3317	[2]	GUIDE-BALL
31	541-3311	[2]	PLATE
32	541-3310 M	[8]	BOLT-HEAD (M8X1.25X20-MM)
33	247-8786	[2]	DOWEL
34	095-0674 M	[10]	BOLT-SOCKET HEAD (M12X1.75X65-MM)
35	6V-5203	[2]	RING-RETAINING
36	541-3322	[1]	BEARING-ROLLER
37	347-6530	[5]	SEAL-RECTANGULAR
38	7I-8148	[2]	SPACER-BEARING
39	6V-5204	[2]	RING-RETAINING
40	541-3330	[1]	BODY AS-PUMP
41	541-3331	[1]	BARREL AS
42	541-3321	[2]	BEARING-NEEDLE
43	541-3334	[1]	PUMP GP-GEAR
44	541-3329	[1]	BLOCK AS
45	541-3302	[2]	DOWEL
46	541-3332	[1]	BARREL AS
47	541-3304	[1]	GASKET
48	096-5516	[1]	RING-RETAINING (EXTERNAL)
49	541-3319	[1]	SPACER-BEARING
50	541-3323	[1]	BEARING-ROLLER
51	541-3301	[2]	DOWEL
52	541-3305	[1]	GASKET
53	541-3314	[1]	GEAR-DRIVE
54	247-8717	[2]	SPACER (65X90X1-MM THK)
55	095-0929	[2]	RING-RETAINING
56	247-8726	[1]	COVER
57	541-3325	[1]	SHAFT-DRIVE
58	295-9695	[1]	SEAL-LIP TYPE
59	095-0944	[1]	RING-RETAINING
60	249-6657	[1]	SEAL-O-RING
61	541-3313	[1]	GEAR-DRIVEN
62	541-3324	[1]	SHAFT-DRIVEN
63	8T-4240	[1]	RING-RETAINING
64	541-3320	[1]	SPACER-BEARING
65	541-3315	[1]	FLANGE
66	247-8966	[4]	VALVE AS-CHECK
			(EACH INCLUDES)
	5H-1472	[1]	BALL
	7I-7448	[1]	STOP
67	206-9292	[4]	SEAL-O-RING
68	189-9763	[2]	SEAL-O-RING
69	541-3356 Y	[2]	HEAD GP-PUMP
