    Automatic Conductor Aluminium Foil And Copper Foil Winding Machine

    Automatic Conductor Aluminium Foil And Copper Foil Winding Machine


    Description of copper foil winding machine BRJ200


    Automatic copper foil winding machine BRJ200 is a professional foil foil winders for winding transformer coils and other similar products. This kind of foil winding machine is provided with one foil decoiler, which makes the machine wind one layer of foil. With two insulation paper decoilers, the copper foil winding machine can wind one or two layers of insulation paper at once. With cold pressure welding, the copper foil winding machine can weld bus bar and foil together. The copper foil winding machine is driven by servo motor, which guarantees all actions of the machine are precise. The foil winding machine is provided with PLC control system. With HMI, the copper foil winding machine can be operated easily.


    Main components of copper foil winding machine BRJ200


    1. Main frame

    2. Foil conductor decoiler

    3. Roller

    4. Winding unit

    5. Insulation decoiler

    6. Photoelectric sensor

    7. Cold press welding unit

    8. Pneumatic unit


    Technical parameters of copper foil winding machine BRJ200


    Typical standard specifications of copper foil winding machine BRJ200 are shown below and the copper foil winding machine can also be manufactured as requested.

    Maximum foil width:200mm
    Finished Coil OD. ( excl. Bus bar ):Ø 600mm
    Finished Coil OD. ( incl. Bus bar ):Ø 700mm
    Finished coil Shape:Circle, Oval and Rectangle etc.
    Conductor Material:Copper or aluminum strip
    Cu Foil Thickness:0.2 ~ 2.0mm
    Al Foil Thickness:0.3 ~ 3.0mm
    Foil Material ID.:Ø 500mm
    Foil Material OD.:Ø 1000mm, Maximum
    Foil Decoiler Number:1 pcs
    Foil Decoiler Length:250mm
    Foil Decoiler Expanding Range:Ø 420 ~ 520mm
    Maximum Coil Weight:750kg
    Rectifying Mode:Photoelectric sensing
    Insulation Paper Decoiler Number:1set
    Insulation Paper Coil OD.:Ø 400mm, maximum
    Insulation Paper Coil ID.:Ø 76mm
    Insulation Decoiler Width250mm
    Insulation Paper Decoiler Shaft:Expandable (pneumatic open/close action)
    Winding Speed:0 ~ 60rpm
    Winding Power of Servo Motor:5.5kw
    Welding Device:Cold welding
    Control System:PLC
    Operation Interface:Touch screen

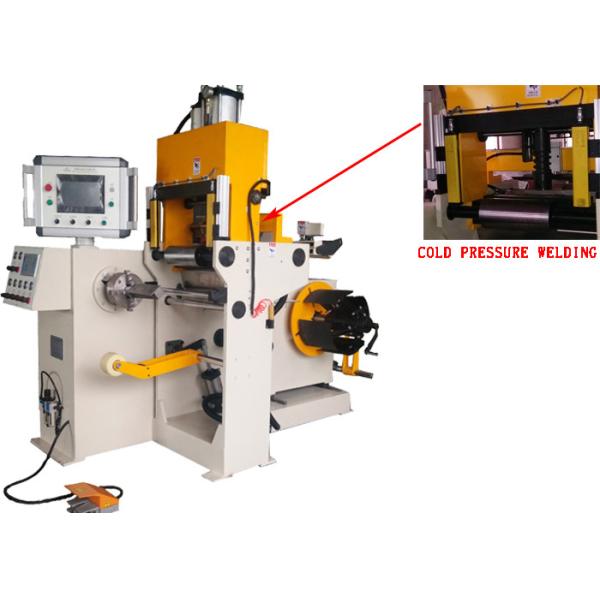

    Fig 1: Copper foil winding machine BRJ200's full view


    Fig 2: Copper foil winding machine BRJ200's back view
