    ASTM B366 N10276 ECC Reducer High Purity Medium Delivery Pipelines

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : ASTM B366 N10276
    Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Price : Negotiable
    Payment Terms : T/T, L/C AT SIGHT
    Supply Ability : According to Client Requirements
    Delivery Time : Depends on quantity
    • Product Details
    • Company Profile

    ASTM B366 N10276 ECC Reducer High Purity Medium Delivery Pipelines

    ASTM B366 N10276 REDUCER




    ASTM B366 N10276 Reducer is a reducing pipe made of Hastelloy C-276 (UNS N10276), which complies with ASTM B366 standard and is designed for extreme corrosive environments. It is made of nickel-molybdenum-chromium as the core component, has excellent resistance to hydrochloric acid and chloride stress corrosion and high temperature stability (applicable temperature -196°C to 400°C), and has a density of about 8.89 g/cm³.

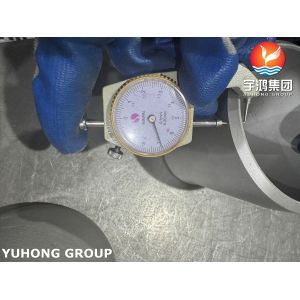

    The tube is formed by welding and needs to be subjected to radiographic inspection, pressure testing and pickling passivation treatment. The size complies with ASME B16.9/B16.11 standards and is widely used in chemical industry, marine engineering and flue gas desulfurization systems to ensure long-term safe operation in strong acid and chlorine-containing media.


    Mechanical Properties of ASTM B366 Hastelloy C276 Butt weld Pipe Fittings


    ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
    Hastelloy C2768.89 g/cm31370 °C (2500 °F)Psi – 1,15,000 , MPa – 790Psi – 52,000 , MPa – 35540 %



    Chemical Composition of Grade Hastelloy C276 Butt weld Fittings


    GradeCMnSiSCoNiCrFeMoP
    C2760.010 max1.00 max0.08 max0.03 max2.50 max50.99 min*14.50 – 16.504.00 – 7.0015.00 – 17.000.04 max



    ASME SB366 Hastelloy Buttweld Fittings Equivalent Grades


    STANDARDWERKSTOFF NR.UNSJISGOSTENOR
    Hastelloy C2762.4819N10276NW 0276ХН65МВУNiMo16Cr15WЭП760



    Hastelloy C276 Specifications and Standards


    GradeNorth AmericaFranceGermanyJapanRussiaEuropeanRussianBritishOther Names
    Hastelloy C276UNS N10276-WNR/DIN 2.4819JIS NW 0276GOST ХН65МВУEURONORM NiMo16Cr15WOR ЭП760Alloy C276/ Inconel C276






    Application

    1.Chemical industry: used in strong acid (hydrochloric acid, sulfuric acid), organic acid and mixed acid medium delivery systems, such as reactors, heat exchangers and pipeline connections, to resist chloride stress corrosion cracking (SCC).

    2.Environmental protection and flue gas desulfurization (FGD): treatment of sulfur-containing flue gas, wet chlorine gas and acidic wastewater systems, to withstand high temperature and wet corrosion environments.

    3.Marine engineering: seawater desalination equipment, submarine pipelines and ship systems, to resist chloride ion corrosion and microbial erosion in seawater.

    4.Pharmaceutical and food processing: high-purity medium delivery pipelines, to avoid metal ion contamination, while withstanding corrosion by detergents (such as hypochlorous acid).

    5.Energy and oil and gas: acidic gas fields (including H₂S, CO₂) and refining equipment in oil and gas production, to solve corrosion problems under high temperature and high pressure.







    Quality ASTM B366 N10276 ECC Reducer High Purity Medium Delivery Pipelines for sale
