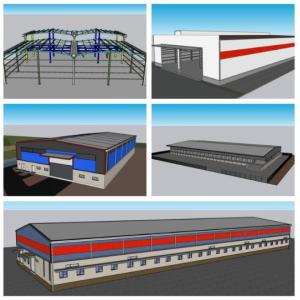

Pre Engineered Free Design Warehouse Steel Structure Pre-engineered Building Warehouse Prefabricated

PRE-ENGINEERED BUILDING

Pre-engineered buildings are defined by the following geometrical parameters: Building width, Length, Eave height, Roof slope, Sidewall bay spacing, end wall bay spacing and main frame module space. Also design loads are the basic parameter.

Building Length and width are defined by the distance between steel lines. Extreme surface edges of girts and purlins are treated as steel line. Sum of side wall bay spaces will be equal to the building length.

Eave height is the distance from Finished floor level to inter section point of roof and sidewall steel line.

Roof Slope is defined as the ratio between vertical distance and horizontal distance of the roof surface. Standard roof slopes are 0.5:10 and 1.0:10

To describe the side wall bay spacing, main frame column spacing to be referred start from back end wall steel line to right end wall steel line. Same way back end wall and front end wall bay spacing to be given from left side wall steel line to right side wall steel line.

Primary Main frames:

Pre-engineered buildings offer complete freedom of design to accommodate customers need. KXD has particularly developed several types to offer optimized economical configuration for customers to choose from according to space, span, crane and architectural requirements.

Frame

When building width is less than 25m, clear span frame will provide un-interrupted clear work space in the building. When building width is more than 25m, it will not be an economical choice to the customer.

Airport Hangers

The width of the buildings may vary from 30m to 90m depending upon the number and type of aircraft. Hangers up to 60m clear span are economically built using pre-engineering building system; however, for span exceeding 60m, a structural truss-column system becomes more economical.

Multi span Frame

The introduction of interior columns allows for greater spans without internal gutters and rainwater pipes. This type of design optimizes bay spacing, building weight and therefore cost.

Single Slope buildings are offered with single or multi-span modular options. Straight or tapered columns are available.

Multi Gable Buildings are maintaining a low ridge height for very wide buildings.

Our Company

Qingdao KXD Steel Structure Co., Ltd, is a professional enterprise specializing in designing, detailing, manufacturing, and constructing high quality steel structures, prefabricated houses and container houses.

In order to render our clients with impeccable products and services, our company has obtained CE certification (EN1090 certificate), ISO 9001, ISO140001, ISO45001 Certificate and WPQR for anticipated apprasal from our clients. We lay our vision on global markets in a bid to attain a wider client base such as Canada, Australia, Germany, France, Brazil, England, America, Ethiopia, Algeria, etc., that is to say, more than 130 countries around over the world.

A solid design and engineering team is crutial to the success of a steel building company. At KXD, you shall witness more than 50 members of designers, architects, detailers, consultants etc. KXD is destined to offer tailed and reliable design and engineering services to each of our customer whether for industrial, commercial or agricultural property developments.

Based on the moto of Trustyworthiness, Professionalism, Cooperation, Mutual benefits, our company is building a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after-sales services to worldwide clients. Our goal is to be a household name in the steel building industry.
