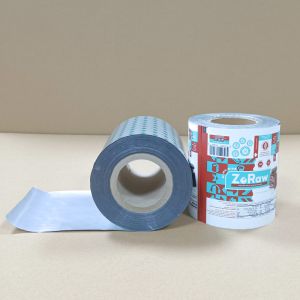

    ​Pre-Printed AL / VMPET Composite Roll Stock 8-Color Pantone & GS1 Barcode

    Ask Lasest Price
    Brand Name : Bright Pack
    Model Number : B010
    Certification : patent for invention、BRC、GRS
    Price : $3-3.5/kg
    Payment Terms : T/T,Western Union
    Supply Ability : 200000pcs/day
    Delivery Time : 11-13work days
    • Product Details
    • Company Profile

    ​Pre-Printed AL / VMPET Composite Roll Stock 8-Color Pantone & GS1 Barcode

    Product Attributes Table for ​Pre-Printed AL/VMPET Composite Roll Stock

    AttributeDescriptionReference
    Material Structure3–5 layers coextruded with Aluminum Foil (AL) and Vacuum Metallized PET (VMPET) as core barrier layers, laminated with PE/PP for heat sealing.
    1
    Printing Technology8-color gravure printing with Pantone® C/U/TPX color matching (±0.1mm alignment accuracy), supporting dynamic QR codes and GS1-128 barcodes.
    1
    6
    7
    Barrier PerformanceOxygen Transmission Rate (OTR) ≤0.05 cm³/m²·day; Water Vapor Transmission Rate (WVTR) ≤0.5 g/m²·24h (38°C, 90% RH).
    1
    CertificationsISO 9001:2015, FDA 21 CFR, EU 1935/2004 (food contact compliance), GS1 Global Traceability Standards.
    1
    9
    10
    ApplicationsHigh-end food pouches (coffee, snacks), pharmaceutical blister packs, luxury cosmetic packaging.
    1
    SustainabilityRecyclable PET/AL layers; complies with EU Ecolabel and REACH regulations. Optional 30% post-consumer recycled content.
    1
    11

    Product Specifications Table

    ParameterSpecificationReference
    Thickness Range80–250 microns (customizable for vertical/horizontal form-fill-seal machines).
    1
    Tensile Strength≥40 MPa (machine direction) / ≥35 MPa (transverse direction).
    1
    Heat Seal Strength8–12 N/15mm (compatible with LDPE/LLDPE sealing layers; temperature: 120–160°C).
    1
    Puncture Resistance≥60 N (tested per ASTM D5748; ideal for sharp-edged product packaging).
    1
    Printing Resolution175–200 LPI (line screen); supports 8-color Pantone® Solid Coated/Uncoated and metallic inks.
    6
    7
    Barcode ComplianceGS1-128 (ISO/IEC 15417) and GS1 DataMatrix (ISO/IEC 16022) for batch/expiry date traceability.
    9
    10
    11
    Roll DimensionsWidth: 200–1200 mm; core ID: 3"/6"; max roll weight: 100 kg.
    1
    Temperature Range-40°C to 121°C (retort-safe for sterilization and frozen storage).
    1
    MOQ & Lead TimeMOQ 30,000 linear meters; production lead time: 15–25 days.
    1
