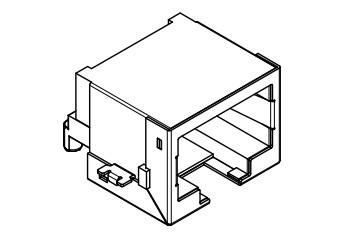

    Tab Down 615108150221R Shielded Modular Jack THR Mid-Mount

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : 615108150221R
    Certification : UL,ISO,ROHS,REACH
    Price : $0.09-$3.85
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 4200K-PCS/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    Tab Down 615108150221R Shielded Modular Jack THR Mid-Mount

    615108150221R Material Properties :

    Product Type

    8P8C RJ45 Connector

    Insulator Material

    Liquid Crystal Polymer (LCP)

    Insulator Flammability RatingUL94 V-0
    Insulator ColorBlack
    Contact MaterialCopper Alloy
    Contact PlatingGold
    Contact TypeStamped
    Shielding MaterialBrass
    Shielding PlatingNickel (Ni)

    Electrical Properties:

    Part Number615108150221R
    Rated Current1.5A
    Working Voltage125V (AC)
    Withstanding Voltage Pin to Pin1000V (AC) 1min
    Withstanding Voltage Shielding to Pin1500V (AC) 1min
    Contact Resistance20mΩ max.
    Insulation Resistance1000MΩ min.

    615108150221R Datasheet-Recommended Hole Pattern:

    615108150221R Datasheet
