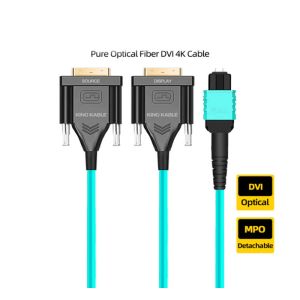

MPO Fiber Cable DVI Standard Signal Port Compliant With DP 1.4 Protocol Supports 4K Ultra HD Video System

Product Description:

The MPO FIBER CABLE DVI is a high-performance fiber optic video transceiver that integrates the latest image processing and optical engine technologies. It supports up to 10.2Gbps data transfer rate and features a standard MPO fiber optic interface, delivering uncompressed, zero-latency 4K@30Hz video signals over a single fiber cable. No additional adapters or signal amplifiers are required, making it truly plug-and-play. Ideal for high-definition video transmission and mission-critical applications.

Features:

1. Complies with DVI2.0 standard, supports 4K@30Hz resolution
2. Maximum transfer bandwidth of 10.2Gbps
3. Supports EDID, HID keyboard/mouse signals, and RS-232 passthrough
4. 8/10/12 bit color depth support
5. MPO Fiber: 1 MPO fiber output, standard MPO fiber connector
6. Transmission delay less than 2ms
7. Transmission distance of up to 999 meters
8. TX/RX power consumption ≤ 0.5W
9. 5V USB power supply

Technical Parameters:

Applications:

1. Large conference rooms, enterprise video conferencing systems
2. High-performance display devices, digital signage systems
3. Security surveillance systems, remote video transmission
4. Professional video production and broadcasting industries
5. Data centers, network operator
