Product Description:

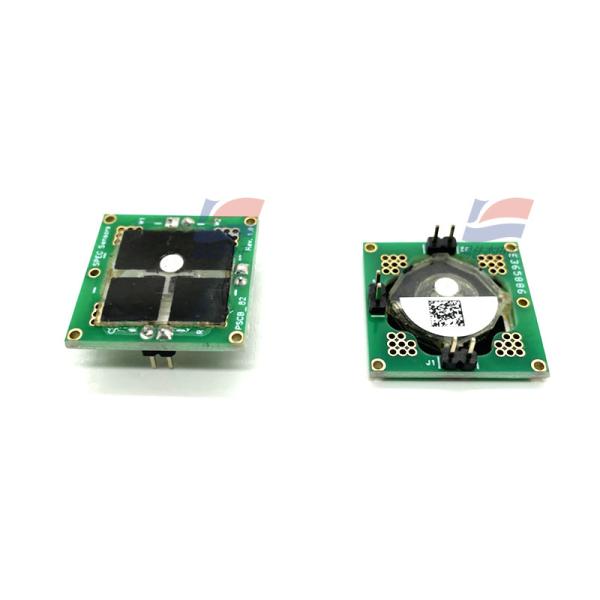

YJJ 110-406 3SP-O3-20 3SP-O3-5P Small Volume Ozone Sensor The O3
Sensor Is Used For Air Quality Monitoring
Features:
Our screen-printed electrochemical Sensor technology (SPEC Sensor™)
revolutionizes existing technology and provides safety for users
and industry
Monitoring offers new applications.
SPEC's printed electrochemical ozone sensor (O3 sensor)3SP-O3-20 is
of high quality and low price. Ultra-thin printed sensors are easy
to integrate into wireless, handheld and other networking
solutions.
Due to their high performance, low cost and small size, these
sensors are ideal for health, environmental, industrial and
residential monitoring.
Second, ozone sensor (O3 sensor)3SP-O3-20 features
Small size, low profile (20x20x3.0mm)
Long life (2 years in normal use, and up to 10 years in an
environment without O3 and other interfering gases is expected)
Fast response (< 15 seconds)
Low power consumptionIndividual calibration (NIST traceable)
Passed the ROHS certification
3. Ozone sensor (O3 sensor)3SP-O3-20 application
Air quality monitoring
Industrial safety
Air purification control
4, Ozone sensor (O3 sensor)3SP-O3-20 technical parameters
Range 0 to 20 ppm
Lower detection limit < 20 ppb (depending on instrument)
Repeatability < reading +/- 3%
Response time < Generally less than 15S
Sensitivity @ 0 mV-32 +/ -10 nA/ppm
Expected working life > 5 years (10 years @ 23+/-3C; 40+/-10%
RH)
Operating temperature range -30 to 50 degrees (continuous -20 to 40
degrees)
Operating humidity range (non-condensing) 0 to 100% RH (lasting 15
to 95%)
Power consumption 10 to 50 uW (depending on circuit and ambient O3
concentration)
Specifications:
| Lower detection limit | < 20 ppb |
| Repeatability | < reading +/- 3% |
| Response time | < Generally less than 15S |
| Sensitivity | 0 mV-32 +/ -10 nA/ppm |
