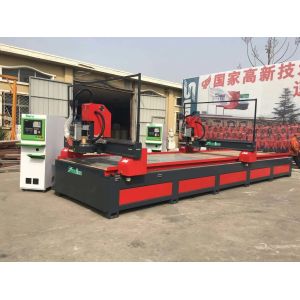

    CNC Engraving Machine Aluminum Plastic Board Processing

    With the rapid development of the manufacturing industry, the requirements for CNC equipment are becoming higher and higher. High speed, high precision, high efficiency, safety, environmental protection, multi-axis linkage and composite processing have become the mainstream of the development of today's processing center. This engraving machine is mainly used for processing aluminum and plastic board.

    Processing function: carving, milling, cutting and drilling of stair beam, non-standard board parts

    Processing materials: aluminum-plastic board, aluminum plate and other building decoration appearance materials

    Processi
    Processing route(X*Y*Z)1600mm*4500mm*200mm
    Integrated machine toolWelding of heavy wall square steel, with thick steel strip welding processing on the machined surface, all parts of the gantry bed body are welded with reinforcement ribs, (designed and manufactured through finite element analysis) the bed body and gantry, all machined surfaces have been formed by CNC five-axis milling.
    Comprehensive SolutionAdopt a three-axis machining center + 8-tool automatic tool changer solution.
    WorkbenchCustomized profile quick-clamping pneumatic workbench surface
    ConsoleIndependent distribution cabinet
    Spindle motorTaiwan Jianchun Servo Machine Spindle 7.5KW Pneumatic Tool Changer Spindle, Servo Motor by Beijing Chaotong,+ 8 Disc Tool Magazine.
    Spindle cooling systemHigh-power chiller + refrigeration system, cold air at low temperature.
    Transmission systemX/Y is precision ground rack drive, and the Z-axis is driven by a Taiwan TBI screw.
    Drive motorJapanese Yaskawa absolute value bus servo motor (Y-axis with dual motors on one side, with the Z-axis being a motor with brake) (Does not need to return to the mechanical origin upon startup, has memory function for direct processing)
    RailTaiwan CSK Guide Rail
    HandwheelEquipped with a steering wheel
    Control systemTaiwan New Generation Bus Absolute Value Control System (fast operation, stable, efficient)
    Main components of electrical appliancesSiemens from Germany
    Processing speed5m/min-20m/min (processing speed is determined based on the customer's tool and material used)
    Idle speedX/Y axis 40m/min, Z axis 15m/min
    Repeatability of positioning±0.05mm/m
    Lubrication systemAutomatic Lubrication System (High-power gear pump, volumetric lubricator. Each lubrication 0.02ML)
    Machine tool wireIgus brand from Germany
    Working VoltageProduce according to the voltage of the customer's country.
    Air source requirements0.6-0.8Mpa
