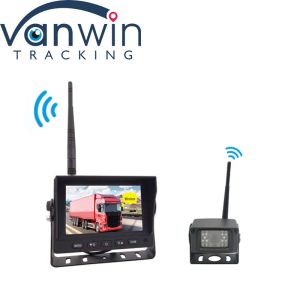

| 5 inch 16:9 5 inch Wireless monitor |
| Stents distance:110mm-200mm |
| Resolution:800*R.G.B*480 |
| PAL&NTSC auto-switching |
| Power supply:24V±10% |
| Built-in 2.4G wireless function,can receive audio/vedio |
| Audio/video；1Way 2.4G wireless video&audio input |
| 2.4G in open area:100M |
| Built-in speaker |
| OSD menu,remote control |
| Touch button screen |
| One wireless waterproof camera |
| Dimention:180*121*24mm |
| embedded with 2.4G transmitter |
| Image sensor: 1/4 420TVL SONY CCD |
| Definition:420TV line |
| Miminum illumination:05.lux |
| image angle:120° |
| System:PAL&NTSC auto-switching |
| 2.4G wireless transmitter:100M in open area |
| Power supply :12V~24V±10% |
| Water proof class :IP67/68 |
| Aluminum alloy shell, outside hanging design |
| special for bus, truck. |
| Watrproof .shockproof,infrared night vision, Resistance to high
temperature and humidity |
| Standard accessories L1.5m power line |
FAQ
Q1. What is included in the kit?
The kit includes a 5-inch wireless monitor, one or two wireless
cameras, a power adapter, mounting brackets, and an instruction
manual.
Q2. Is the camera weatherproof?
Yes, the camera is designed to be weatherproof, making it suitable
for outdoor use.
Q3. How far can the wireless signal reach?
The wireless signal can typically reach up to 100 meters (328 feet)
in open areas, depending on environmental conditions.
Q4. Can I connect multiple cameras to the monitor?
Yes, the monitor supports multiple camera connections, allowing you
to switch between different camera views.
Q5. Is the monitor rechargeable?
The monitor requires a continuous power supply via the included
adapter; it is not rechargeable.
Q6. Does the kit come with a warranty?
Yes, the kit usually comes with a one-year manufacturer's warranty
covering defects in materials and workmanship.
Q7. How do I install the cameras?
The cameras can be easily mounted using the provided brackets, and
the installation process is detailed in the instruction manual.
Q8. Can I use the monitor with other camera brands?
The monitor is designed to work specifically with the included
cameras. Compatibility with other brands may vary.
Q9. Is night vision available?
Yes, the cameras are equipped with infrared night vision
capabilities for clear viewing in low-light conditions.
Q10. How do I troubleshoot if the signal is weak?
Ensure that there are no obstructions between the camera and
monitor, and check for any interference from other electronic
devices. Adjusting the camera's position may also help improve the
signal.
