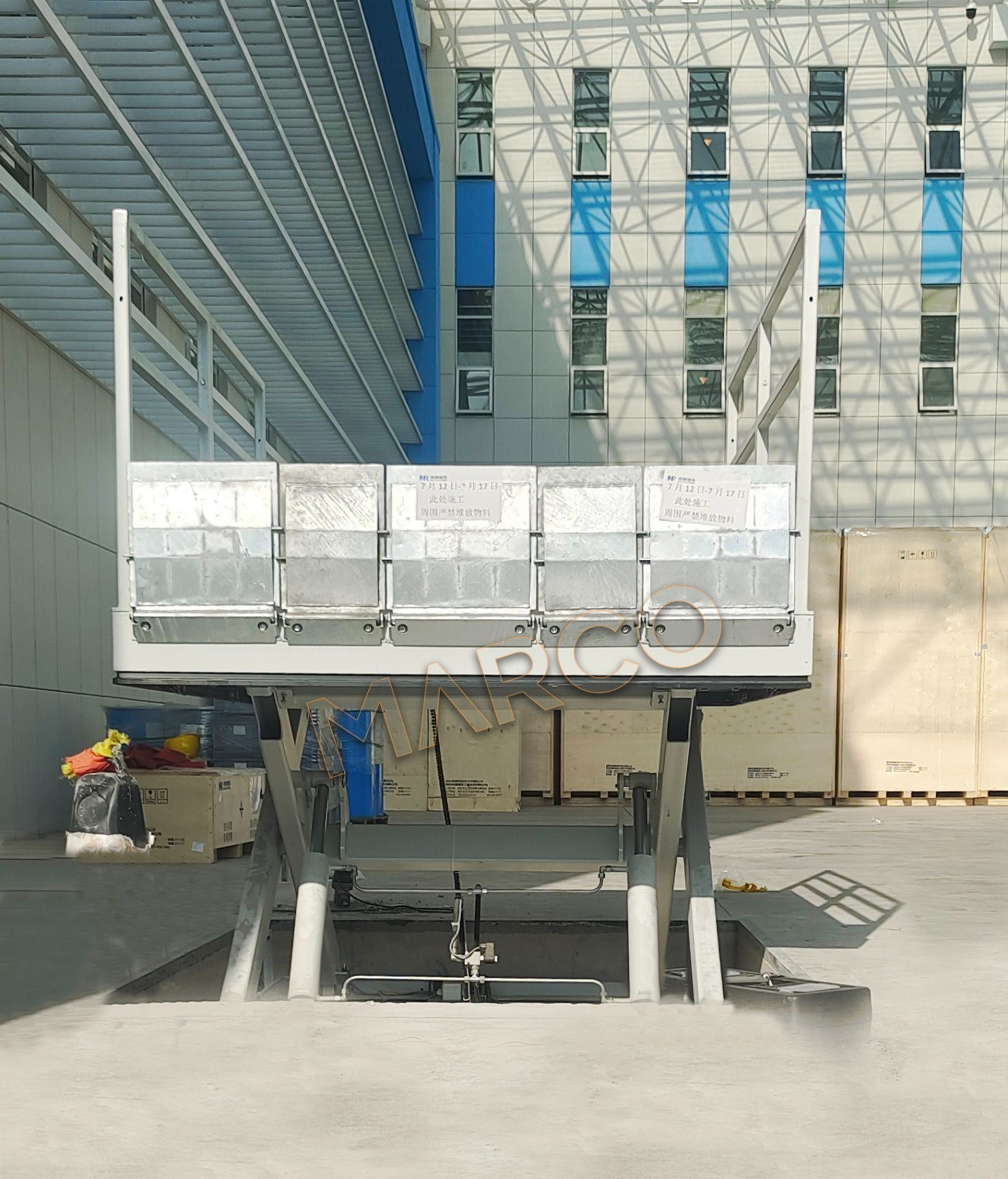

Customization M3-025130-D2K Loading Dock Table with Handrail and Loading Flap

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.
Different from other type of lift table, Loading dock table has standard factors as below:
Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.

Model No.	M3-025130-D2K	Capacity	2500kg
Platform size	2500x2000mm	Base Frame	2500x1900mm
Min. Height	305mm	Lifting Height	1300mm
Model Type	stationary	Lift Time	33s
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Trademark	Marco	HS Code	84289090
Orgin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834,	Design standard	EN1570-1-2011

Loading Dock Table with Handrail and Loading Flap for Loading and Unloading

Loading Dock Table with Handrail and Loading Flap for Loading and Unloading
