    Conveyor Rollers Idlers Press Assembly Machine

    Ask Lasest Price
    Model Number : TY-220*2200
    Payment Terms : L/C,T/T
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Conveyor Rollers Idlers Press Assembly Machine

    Conveyor Rollers Idlers Press Assembly Machine


    The Conveyor Rollers Idlers Press Assembly Machine is a specialized industrial equipment designed for the efficient and precise assembly of conveyor rollers and idler components. This machine automates the pressing and fitting process, ensuring consistent quality, enhanced productivity, and reduced manual labor.


    Key Features:

    • High-Precision Pressing Mechanism: Utilizes hydraulic or pneumatic power to press end caps, bearings, and shafts into roller tubes with consistent force and alignment.

    • Automated Assembly Process: Streamlines the integration of multiple components, reducing assembly time and improving output efficiency.

    • Customizable Settings: Adjustable pressure, speed, and stroke length accommodate a wide range of roller sizes and specifications.

    • Durable Construction: Built with robust materials and components to withstand continuous industrial use.

    • Safety Systems: Equipped with safety sensors and emergency stop functions to protect operators and ensure compliance with industry standards.


    Applications:

    • Widely used in manufacturing facilities for conveyor systems in industries such as mining, logistics, food processing, and material handling.

    • Ideal for both standard and heavy-duty conveyor roller assembly lines.

    By automating the assembly of conveyor idlers and rollers, this press machine improves precision, reduces human error, and boosts overall operational efficiency.



    No.

    Item

    Parameters

    1

    Model

    TY-220*2200

    2

    Machine center height

    850mm

    3

    Tube outer diameter

    76-219mm

    4

    Tube length

    190-2200mm

    5

    Maximum pressing force

    4000Kgf

    6

    Coaxiality error of two press-fit spindles

    ≤0.1mm

    7

    Hydraulic station

    Shandong Kanghao

    8

    Control buttons

    Delixi

    9

    AC contactor

    Delixi

    10

    Proximity switches

    Shanghai

    11

    Programmable Logic Controller (PLC)

    Taiwan Delta

    12

    Miniature relay

    CHINT

    13

    Dimensions

    3900x700x1100mm

    14

    Weight

    2000Kg


    ① The main body of the equipment is cast, which is stable to use and will not deform under long-term pressure. It adopts hydraulic pressing and is a semi-automatic special equipment for assembling belt conveyor rollers. It is suitable for assembling various (cast iron or stamping bearing seats) rollers currently produced at home and abroad.

    ② Adjustment of the structure is simple and direct. It is clear at a glance and is equipped with mechanical positioning fine-tuning. The length and diameter of the press-fitted roller can be adjusted within a certain range. The batch production accuracy is reliable, which reduces the requirements on the labor level and is easy to manage.

    ③ It adopts manual loading, double-head pressing and 6 oil cylinders to complete the pressing process, which improves work efficiency.

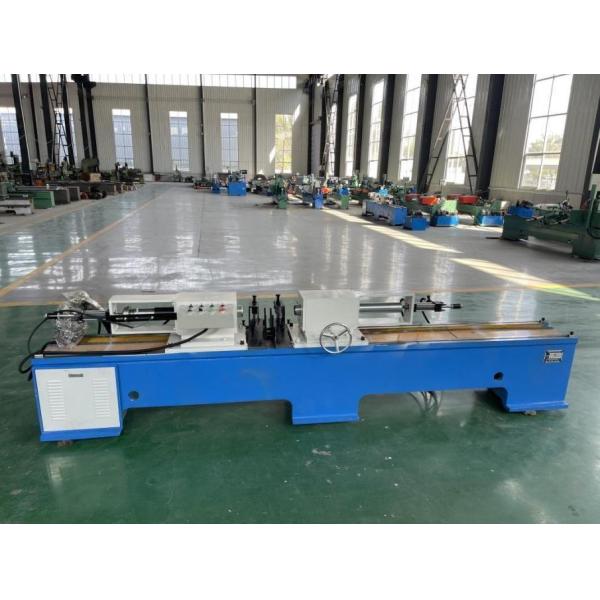

    Quality Conveyor Rollers Idlers Press Assembly Machine for sale
