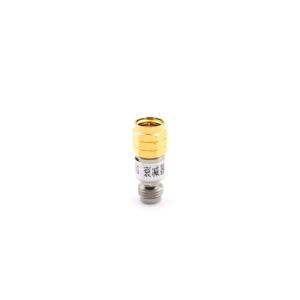

Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB

    Buy cheap Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB from wholesalers

    Buy cheap Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB from wholesalers
    • Buy cheap Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB from wholesalers
    • Buy cheap Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB from wholesalers
    • Buy cheap Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB from wholesalers

    Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB

    Ask Lasest Price
    Brand Name : Terui
    Model Number : TRI-1.85MF-2-65-6
    Certification : RoHS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB

    RF Fixed Attenuators

    N RF Fixed Attenuator is used to reduce the signal level. The general reason for wanting to reduce the signal level may be to avoid receiving a signal with too high a level in a hierarchical circuit, or to meet the need to control the signal level in an application. n RF Fixed Attenuator usually consists of a resistor network that allows heat to escape at a certain rate.

    As a RF Fixed Attenuator supplier, we have a wide range of RF Fixed Attenuator models to meet the diverse needs of different frequency bands and power, and use high-quality materials and advanced technology, guarantee RF Fixed Attenuator products with high precision, low insertion loss and high reliability. Technical Services, professional team at any time to provide buyers with technical advice and customized solutions to solve the use of all kinds of problems. In terms of price, with mature supply chain and efficient production processes, to achieve cost-effective. After-sales also have a sound system to ensure that the purchase of worry-free.

    Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB

    1.85mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz.

    They are widely used in testing system, aerospace field, microwave weapon systems.

    Product Details

    Attenuator 1.85 Male to Female attenuator 2W 65GHZ 6dB

    Teruilai P/N : TRL-1.85MF-2-65-6

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-65GHZ
    Impedance 50Ω
    Nominal Attenuator 6dB
    Power Input 2Watt
    VSWR Maximum 1.45:1
    Mechanical data Requirments
    Durability(matings) ≥500
    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Coupling nut Brass Gold
    Pin contacts Beryllium or copper Gold
    Insulators PTFE
    Electrical data Requirments
    Frequency range 0-40GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.3
    Mechanical data Requirments
    Durability (matings) ≧500
    Environmental data Requirments
    Temperature range -55℃ to +125℃
    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel ,passivated
    Female center contacts Beryllium-Copper Gold-plated
    Insulators PEI

    Datasheet


    Production Ability

    Office


    Workshop


    Workshop


    Workshop


    Feedback

    Submit Message
    Electrical data Requirments
    Frequency range 0-40GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.3
    Mechanical data Requirments
    Durability (matings) ≧500
    Environmental data Requirments
    Temperature range -55℃ to +125℃
    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel ,passivated
    Female center contacts Beryllium-Copper Gold-plated
    Insulators PEI

    Datasheet


    Production Ability

    Office


    Workshop


    Workshop


    Workshop


    Feedback

    Submit Message
