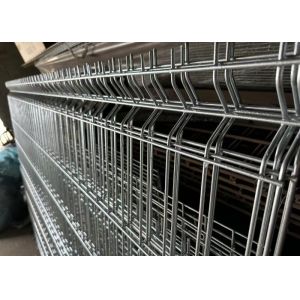

Triangle Security Fence Panel Crash Rated Tamper Proof Hot Dip
Galvanized Coating
Product Overview:
Our Triangle Security Fence Panel is engineered for maximum
perimeter protection in high-risk facilities. Featuring a patented
V-shaped triangular mesh design, this anti-climb, anti-cut fencing
system exceeds international crash ratings (IWA 14-1 and PAS 68
standards) while providing superior tamper resistance. The hot-dip
galvanized coating (minimum 300g/m² zinc) ensures 25+ years of
corrosion-free performance in coastal or industrial environments.
Technical Data Sheet:
| Parameter | Specification |
| Material | High-tensile steel wire (Grade 550MPa+) |
| Wire Diameter | 5.0mm (vertical), 6.0mm (horizontal) |
| Mesh Design | 100mm x 50mm triangular openings |
| Coating | Hot-dip galvanized (300g/m²) + optional PVC |
| Impact Resistance | 50kJ crash rating |
| Panel Size | 2.4m(H) x 3.0m(W) ±1% tolerance |
| Frame | 60x40mm rectangular steel tubing |
| Security Features | Anti-climb, anti-cut, no foot/hand holds |
Applications:
1.Critical Infrastructure:
Nuclear plants, airports, military bases
Border crossings, embassies, data centers
2.High-Security Facilities:
Prisons, detention centers, courthouses
VIP residences, bank vault perimeters
3Industrial Protection:
Oil/gas facilities, power substations
Ports, rail yards, truck depots
Key Advantages:
1. Military-Grade Security
- V-shaped mesh deflects cutting tools and prevents climbing (tested
to BS EN 10223-3)
- 50mm narrow apex angles eliminate grip points
2.Crash-Proven Performance
- Absorbs and redistributes impact energy (certified to PAS 68
vehicle impact standards)
- Maintains structural integrity after collision
3. Zero Maintenance Durability
- 300g/m² galvanization protects against salt spray (2000hrs salt fog
test)
- Optional PVC coating for chemical resistance (e.g., oil refineries)
4.Rapid Deployment
- Pre-assembled panels with clamp-on brackets (50% faster install
than welded systems)
- Modular design allows curved/angled configurations
Production process:
Our Triangle Security Fence Panels are manufactured through a
meticulously controlled production process that begins with
high-quality low-carbon steel wire rods (Grade Q195/Q235), which
undergo rigorous material testing including spectrometer analysis
and tensile strength verification. The wire drawing process
utilizes multi-pass cold drawing to achieve precise diameters
(5.0-6.0mm) with ±1mm tolerance, followed by automated CNC welding
using German-made equipment that ensures consistent V-shaped mesh
formation with ≥1.5KN pull-out strength per weld point. Each panel
then receives a durable 300g/m² hot-dip galvanized coating (85μm
minimum) through a carefully monitored 450°C zinc immersion
process, with optional PVC coating (0.4-0.6mm) available in
standard colors. The final assembly incorporates robotic welding of
60×40mm rectangular steel tubing frames, with 100% dimensional
inspection (±2mm tolerance) and load testing (500kg static
pressure) before weatherproof packaging. Our ISO 9001-certified
manufacturing maintains ≤0.5% defect rates through automated
optical inspection systems and full material traceability, with
capacity to produce 5000m²/day while accommodating custom wire
diameters or mesh sizes within 24 hours - all verified through PAS
68 crash testing and BS EN 10223-3 anti-cut certification.
FAQ:
Q: How long does this fence last?
A: At least 25 years, even near the ocean. With extra coating, over
35 years.
Q: Can someone climb over it?
A: Very hard! The triangle shape gives no places to put hands or
feet.
Q: How fast can it be installed?
A: Much faster than normal fences - about 50% quicker because
panels come ready.
Q: Does it need maintenance?
A: Almost none! Just check it sometimes like you check your house
walls.
Q: Is it expensive?
A: Costs more at first but saves money because it never needs
replacing.
Q: Can I get a sample?
A: Yes, we can send small samples or show you nearby projects.
