✅ Ultra-Smooth & Non-Porous Surface
Electrostatic Dissipative (ESD) or Antimicrobial Coating options to
prevent particle adhesion and bacterial growth.
Seamless joints reduce contamination risks, compatible with daily
chemical/UV sterilization.
✅ Fire Safety & Durability
A2 Fire Rating (EN 13501-1), non-combustible core materials ensure
safety in confined spaces.
Resistant to moisture, chemicals (pH 3-11), and corrosion for 15+
years lifespan.
✅ Thermal & Acoustic Insulation
Low thermal conductivity (0.022-0.028 W/m·K) reduces energy costs.
Noise reduction up to 30dB (ideal for vibration-sensitive labs).
✅ Lightweight & Modular Design
Weight: 10-18kg/m² (40% lighter than concrete), easy to cut/install
with tongue-groove systems.
Customizable thickness (50-150mm) and sizes (max. 12m length).
1. Raw Material Selection:
* Basalt rock (SiO₂≥45%, Al₂O₃≥14%) + slag (≥70% recycled)
2. Fiber Production:
* Electric furnace melting (1,500-1,600°C) → Four-roller
centrifugal spinning (7,200rpm) → Fiber diameter 4-7μm
3. Curing Process:
* Phenolic resin spraying (formaldehyde emission ≤0.05ppm, EN
717-1) → Curing oven at 230°C
4. Lamination:
* Steel plate pretreatment (degreasing → phosphating → nano-ceramic
coating) → Continuous hot pressing (1.2MPa, 180°C)
5. Quality Control:
* Online X-ray inspection (void detection) → Laser thickness gauge
(±0.1mm accuracy) → Batch fire performance testing
Application
Scenarios---------------------------------------------------------------------------------------

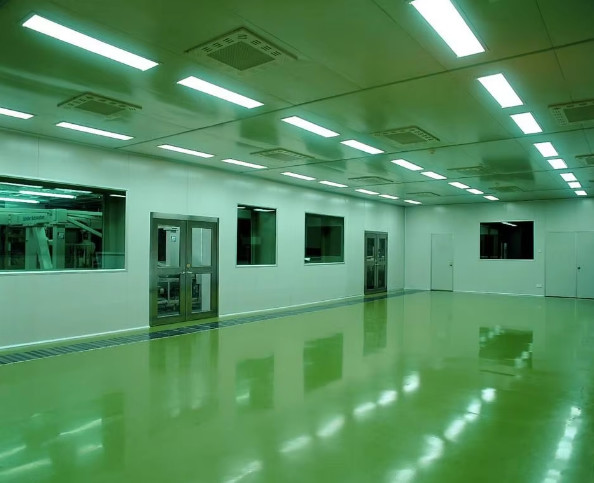

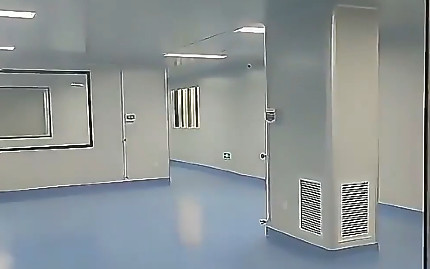

Medical field:
Operating rooms, ICU wards, and sterile drug production workshops:
Utilize antibacterial properties to reduce infection rates and meet
GMP certification requirements.
Electronic industry:
Semiconductor cleanrooms, precision instrument assembly lines:
Anti-static optional models (surface resistance value 10^6~10^9Ω)
to prevent dust adhesion.
Food processing:
Dairy and beverage filling workshops: Corrosion-resistant and
easy-to-clean design, in compliance with HACCP food safety
standards.
Biological laboratories:
P2/P3-level laboratories, animal rooms: Airtight splicing
technology + chemical-resistant, ensuring environmental safety.
Public buildings:
Metro stations, airports: Class A fire resistance + high
wear-resistant surface, balancing safety and aesthetics.
Related Purification
Equipment---------------------------------------------------------
Successful
Project---------------------------------------------------------------------------------------
Semiconductor Wafer Fabs (Class 10 Cleanrooms)
* Solution:
* Wall-ceiling system integrated with HEPA filters
* Grounding resistance <1×10^6Ω, compliant with SEMI F47 voltage
sag standards
* Case Study: 32,000㎡ deployed in a Taiwan 12-inch wafer fab
project
Facilities
* Key Technologies:
* Radius corners (R≥50mm) to eliminate cleaning dead zones
* Pre-installed ports for real-time particle monitoring
Data Center Retrofits
* Energy Efficiency Data:
* U-value 0.28 W/m²·K → 18% annual cooling energy savings
