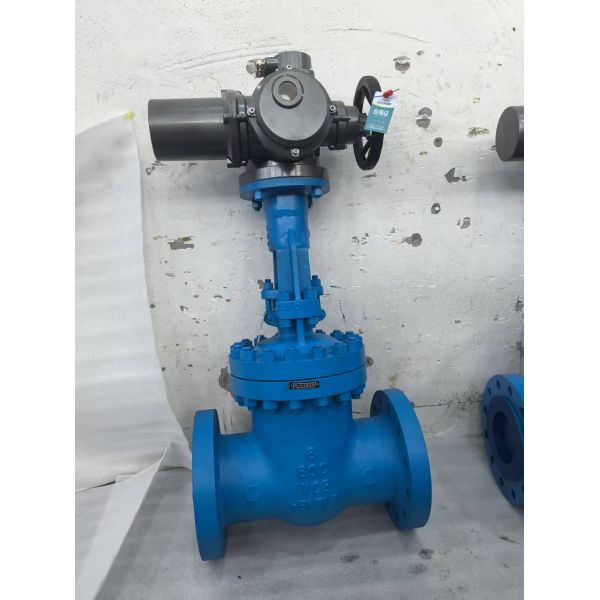

ASTM A216 Gate Valves For High Temperature High Pressure And
Corrosion Resistance
Gate Valve Overview
They have beautiful and advanced structures. The opening and
closing parts of the valve are gate plates. The movement direction
of the gate plates is perpendicular to the direction of the fluid.
The gate valve can only be fully opened and fully closed, and
cannot be adjusted or throttled. The gate plates have two sealing
surfaces, and the wedge angle is 2°52'. The gate plates between the
wedge gates can be made into a whole, which is called a rigid gate
plate; they can also be made into gate plates that can produce
slight deformations to improve their processability and compensate
for the deviation of the sealing surface angle during the
processing process. This type of gate plate is called an elastic
gate plate.
Gate Valve Performance parameter
| No. | Items | Project Name |
| 150(Lb) | 300(Lb) | 600(Lb) | 900(Lb) | 1500(Lb) | 2500(Lb) |
| 1 | PN (MPa) | 2.0 | 5.0 | 10.0 | 15.0 | 25.0 | 45.0 |
| 2 | Case Test Pressure (MPa) | 3.0 | 7.5 | 15.0 | 22.5 | 37.5 | 67.5 |
| 3 | High Pressure Sealing Test Pressure (MPa) | 2.2 | 5.5 | 11.0 | 16.5 | 27.5 | 49.5 |
| 4 | Max. Temperature Working Pressure (MPa) | ≤2.0 | ≤5.2 | ≤10.4 | ≤15.6 | ≤25.8 | ≤45.8 |
Main Components Material
| Part Name | Material name |
| Body | A216WCB | A217 WC6 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Valve cover | A216WCB | A217 WC6 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Valve plate | A216WCB | A217 WC6 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Sealing face | 2Cr13 | STL | Body/STL | Body/STL | Body/STL | Body/STL |
| Stem | A180 2 F6a | A182 F11 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Gasket | 304+Flexible graphite | 304+Flexible graphite | 304+Flexible graphite | 304+Flexible graphite | 304+Flexible graphite | 304+Flexible graphite |
| Bolt | A193 B7 | A193 B7 | A193 B8 | A193B8M | A193 B8M | A193 B8M |
| Nut | A194 2H | A194 6 | A194 8 | A194 8M | A194 8M | A194 8M |
| Appicable temperature | -29-425℃ | -29-540℃ | -46-425℃ | -46-425℃ | -46-425℃ | -46-425℃ |
| Suitable medium | Water, steam, oil, etc. | Water, steam, etc. | Nitric acid weak corrosive medium | Nitric acid weak corrosive medium | Nitric acid weak corrosive medium | Nitric acid weak corrosive medium
|
Who we are
SND has been producing and selling metal goods for about 20
years.By using manufacturing techniques including sand casting,
lost wax casting, lost foam casting, and precision machining, the
company has been supplying goods made of materials like cast iron,
steel, stainless steel, aluminum, etc. Additionally offered are
surface finishing and assembly services.
Our company has successfully created products in a variety of
industries, including automotive, rail transportation, agricultural
machinery, chemical, energy, electricity, water, air compressor,
and construction, thanks to our consistent efforts over the past
few years.
Our factories' ISO9001-accredited quality control systems guarantee
a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation,
tensile/yield strength, and other inspections are carried out as
part of routine production procedures.
