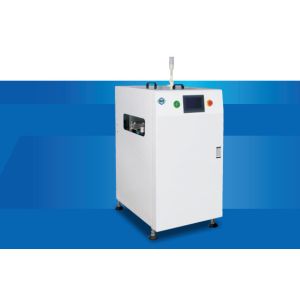

SMT SERIES PCB CONVEYOR MACHINE/ Vacuum Bare Board Loader
Features
Top board device of SMT production line cirouit board
PLC control, color HMI operation system
Using multiple independent vacuum generating systems, stable and
reliable adsorption
The platform platform automatically rises and falls to get to work
faster
PLC control system, multiple electrical circuit protection design
which are security and stability
Sound and light alarm system, abnormal information text prompts,
easy operation and maintenance
Standard SMEMA signal communication
Technical Parameters
| Description | Used to automatically send circuit boards to the production line |
| Time for feed PCBs | Approx. 8 seconds or specified by customer |
| Board maximum capacity | 200pcs(0.6mm thick PCB) |
| power supply and electric load | 220V(AC,SP)120VA max |
| Air pressure and air flow | 4-6bar, Up to 30L/min |
| Thickness of PBCs | 0.6mm min |
specification parameter
| Ten name of the | CHT330 | CHT-460 |
| PCB Size(L*W) | 80x50-390x330mm | 80x50-510x460mm |
| Weight | 195Kg | 205Kg |
| Boundary dimension (L*W*H) | 600x790x1170mm | 600x900x1170mm |
