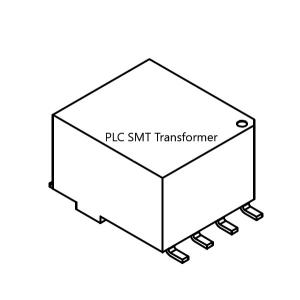

    SMT Mount 74941503 PLC Transformer 20μH Inductance 8PINS Layout

    74941503 - Power Line Communication (PLC) Transformer

    Key Features

    Product Type: Ethernet Transformer for Ethernet/Power Line Communication

    ●​ Turns Ratio: 1:4:3 (±3% tolerance)

    ●​ Mounting: Surface-Mount (SMT)

    ●​ Operating Temperature: -40°C to +125°C (industrial/automotive grade)

    ●​ High Isolation: 4500 VAC (1 min, primary to secondary)

    ●​ Package: 8-pin SMT compact design

    ●​ Compliance: RoHS & REACH compliant

    Electrical Properties

    PropertyTest ConditionsValueUnitTolerance
    Inductance (L)2 MHz/100 mV (Pins 1-4)20μHmin.
    Leakage Inductance (Lₛ)2 MHz/100 mV0.05μHmax.
    Turns Ratio (n)N3:N1:N21:4:3-±3%
    Insulation Test Voltage (Vₜ)1 min.4500V (AC)min.
    Insulation Resistance (Rₛₒ)-10min.
    DC Resistance 1 (Rᴅᴄ₁)Pin 2-3 (short pin 5-8)85max.
    DC Resistance 2 (Rᴅᴄ₂)Pin 1-420max.
    DC Resistance 3 (Rᴅᴄ₃)Pin 5-870max.

    Notes:

    1. Pin connections are critical for resistance measurements

    2. Turns ratio tolerance is ±3%

    General Information

    ParameterSpecification
    Operating Temperature-40°C to +125°C
    Storage Conditions<40°C; <75% RH (in original packaging)
    Moisture Sensitivity Level (MSL)1
    Test Conditions+20°C, 33% RH (unless specified)

    Certification

    StandardCompliance Status
    RoHS ApprovalCompliant [2011/65/EU & 2015/863]
    REACH ApprovalConform or declared [(EC)1907/2006]

    74941503 Datasheet:
