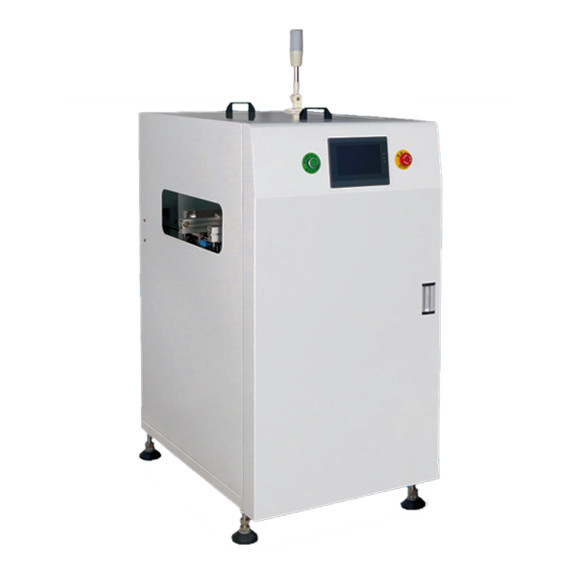

SMT Automatic Vacuum Bare Board Loader For Circuit Boards

Automatic Loader

Description:

This machine is used for automatically send circuit boards to the production line.

Features:

1. This machine is a board loading device for circuit boards in semiconductor production lines.

2. Adopt PCL control and colorful human-machine interface operation.

3. Adoption of cylinder clamping plate, compatible with a variety of materials of circuit boards.

4. Auxiliary positioning brake system, precise positioning, fast lifting speed, high productivity

5. Multiple electrical distribution circuit protection, safe and reliable

6. Adopting sound and light prompt alarm system, if there is abnormal information, the system will use text prompts, easy to operate and maintain.

7. Uses standard SMEMA signaling communications

Technical Parameters :

1. Time for feed PCBs: Approx. 8 seconds or user-specified time

2. Power supply and electric load:220V(AC),120 VA (SP)max

3. Air pressure and air flow:4-6bar, up to 30L/min

4. Thickness of PCBs:0.6mm min

5. Board maximum capacity: 200pcs(0.6mm thick PCB)
