Product Description:

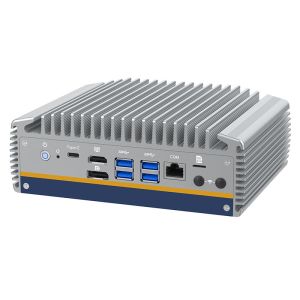

The Industrial Mini PC is a powerful computing solution designed
for industrial applications, featuring an advanced Industrial PC
Motherboard with an Intel Graphics Engine for enhanced graphics
performance.
Equipped with multiple display options, including 1 HDMI port, 1
DisplayPort, and 1 Type-C port, this Industrial Mini PC provides
versatile connectivity for various industrial monitoring and
control systems.
With a 2 Years Warranty, you can trust in the reliability and
durability of this Industrial Mini PC, ensuring long-term support
and peace of mind for your industrial operations.
Designed with a fanless cooling solution, this Industrial Mini PC
operates quietly and efficiently, making it suitable for industrial
environments where noise levels need to be minimized.
For storage flexibility, the Industrial Mini PC features 1 M.2 2280
Slot and 1 2.5” HDD slot, allowing you to customize the storage
capacity based on your specific industrial computing needs.
Features:
- Product Name: Industrial Mini PC
- Storage: 1*M.2 2280 Slot, 1*2.5” HDD
- Cooling Solution: Fanless
- Warranty: 2 Years Warranty
- Graphics Engine: Intel Graphics
- Display: 1*HDMI, 1*DP, 1*Type-C
Technical Parameters:
| Model: SM8U8 |
| PC |
| CPU | Intel Core Ultra 5 125U (12 core 14 threads, Turbo 4.3G), Fanless |
| Intel Core Ultra 7 155U (12 core 14 threads, Turbo 4.8G), Fanless |
| NPU | Intel AI Boost(Max Frequency 1.4 GHz) |
| RAM | Support 2*DDR5 5600 SODIMM memory slot, Max. Support 64GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Graphics |
| Display Port | 1*HDMI, 1*DP, 1*Type-C |
| Front I/O | 1*Power Button, 1*Restart Button, 1*Type-C (support DP / USB3.2 /
PD 5V1A), 1*HDMI, 1*DP, 4*USB3.2, 1*RJ45 serial port (support
Console), 1*Nano-SIM card slot |
| Rear I/O | 1*DC-IN 12V, 8*2.5G LAN ( 1*Intel i226-LM with vPro, 7*Intel
i226-V) |
| Expandable I/O | Optional 2*USB2.0, 4*GPIO |
| Expansion Slot | 1*M.2 2280 slot M-Key (Support M.2 PCIE4.0 X4 and M.2 NVME);
1*M.2 3052 slot B-key (USB3.0 Support 4G/5G);
1*M.2 2230 slot E-key (CNVio2, Support WIFI); |
| Network | 7*Intel i226-V, 1*Intel i226-LM |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD |
| Other Function | TPM2.0, Auto power on when there is electricity, Wake on LAN, PXE
boot, Watch Dog |
| Power Supply |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V (9-36V DC Optional) |
| Enclosure |
| Material | High-quality all aluminum |
| Color | Grey (color can be customized) |
| Operating Environment |
| Temperature Range | Operating: -20°C ～ +70°C , surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details |
| Net weight | 1.3 kg |
| Product Dimension | 225.5 * 140 * 68.5 mm |
| Packing size | 10 pcs per carton, carton size: 720*300*450 mm |
| Accessories | Power adapter, power cord, Vesa mount,warranty card |
| Other |
| Mounting (options) | wall mounting brackets (optional) |
| Warranty | 2 years warranty |
| Certificates | CE, FCC, RoHS |
Applications:
Sihovision's Industrial Mini PC model SM8U8 is a versatile and
reliable computing solution designed for a wide range of industrial
applications. With its fanless design, this Industrial Mini PC is
ideal for use in environments where dust, dirt, and other
contaminants may be present, making it a perfect choice for
industrial settings that require high performance and durability.
One of the key Product Application Occasions for the Sihovision
Industrial Mini PC is in Industrial Automation, where it can be
used for process control, data acquisition, and monitoring systems.
Its compact size and fanless operation make it suitable for
installation in tight spaces or harsh environments. The Industrial
Mini PC can also be used in Industrial Control Rooms, providing
reliable computing power for monitoring and managing industrial
processes.
Another important Product Application Scenario for the SM8U8
Industrial Mini PC is in Industrial IoT (Internet of Things)
applications. With its Intel Graphics engine and multiple display
options (1*HDMI, 1*DP, 1*Type-C), this Industrial Mini PC can be
used to drive digital signage, interactive kiosks, and other IoT
devices in industrial settings.
Additionally, the Sihovision Industrial Mini PC is well-suited for
Industrial Networking applications, where it can serve as a
gateway, firewall, or server for managing industrial networks. Its
rugged design and wide operating temperature range (-20°C to +70°C)
ensure reliable performance in challenging industrial environments.
With certifications including CE, FCC, and RoHS, customers can
trust the quality and safety of the Sihovision Industrial Mini PC.
The product is in stock and available for a minimum order quantity
of 1, with flexible payment terms including T/T, PayPal, L/C, D/A,
D/P, Western Union, and MoneyGram. The price is negotiable, and the
product comes packaged in cartons of 10pcs, with a carton size of
720*300*450 mm.
For customers in need of Industrial Fanless Mini PC, Industrial
Rackmount PC, or Fanless Mini PC solutions, the Sihovision SM8U8 is
a reliable and cost-effective choice with a supply ability of
5000pcs per month. With a working voltage of DC 12V, this
Industrial Mini PC is ready to meet the demands of various
industrial applications with its high performance and durability.
Experience the power and reliability of Sihovision's Industrial
Mini PC model SM8U8, proudly made in China and ready to support
your industrial computing needs.
Customization:
Product Customization Services for the Industrial Mini PC:
Brand Name: Sihovision
Model Number: SM8U8
Place Of Origin: China
Certification: CE, FCC, RoHS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 10 Pcs Per Carton, Carton Size: 720*300*450 Mm
Delivery Time: 7 Days
Payment Terms: T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000pcs/month
Processor: 14th Core Ultra I5/i7
Cooling Solution: Fanless
Display: 1*HDMI, 1*DP, 1*Type-C
Usb Port: 4*USB3.2+1*Type-C
Expand: 1*Mini-PCIe
Support and Services:
Our Industrial Mini PC product comes with comprehensive product
technical support and services to ensure smooth operation and
efficiency. Our team of experts is available to assist you with any
technical queries or issues you may encounter.
We offer a range of services including installation support,
troubleshooting assistance, software updates, and maintenance
guidance. Our goal is to provide you with the support needed to
maximize the performance and longevity of your Industrial Mini PC.
Additionally, we provide training sessions and resources to help
you make the most of your Industrial Mini PC, ensuring that you are
equipped with the knowledge and skills to utilize its full
potential.
Packing and Shipping:
Product Packaging:
The Industrial Mini PC is carefully packaged in a sturdy cardboard
box with protective foam inserts to ensure safe transportation. The
product is wrapped in plastic to prevent any scratches or damage
during shipping.
Shipping:
We offer fast and reliable shipping services for the Industrial
Mini PC. Once your order is confirmed, the product will be
dispatched within 1-2 business days. You will receive a tracking
number to monitor the delivery status of your package.
FAQ:
Q: What is the brand name of the Industrial Mini PC?
A: The brand name of the Industrial Mini PC is Sihovision.
Q: Where is the Industrial Mini PC manufactured?
A: The Industrial Mini PC is manufactured in China.
Q: What certifications does the Industrial Mini PC have?
A: The Industrial Mini PC is certified with CE, FCC, and RoHS.
Q: What are the packaging details for the Industrial Mini PC?
A: The packaging details include 10 Pcs per carton with a carton
size of 720*300*450 mm.
Q: What are the available payment terms for purchasing the
Industrial Mini PC?
A: The available payment terms for purchasing the Industrial Mini
PC include T/T, Paypal, L/C, D/A, D/P, Western Union, and
MoneyGram.
