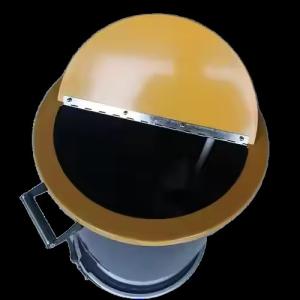

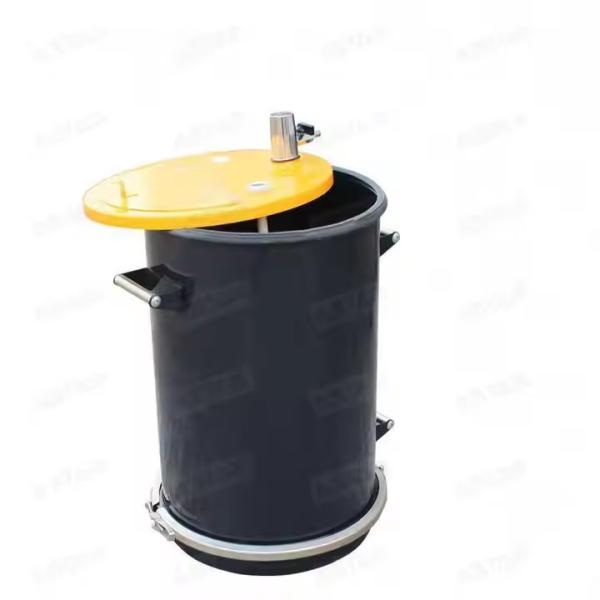

1007130 Complete Powder Hopper For 2F Powder Coating Machine
Product Description
1000617 Complete Back Cover for Select Gm02 Manual Powder Coating Gun.It more suitable for profiles or flat parts powder coating. The size and material can completely work with GA03 and GM03 electrostatic powder coating guns.
| Product Features |
| *Brand | Astar | | *Name | 1007130 Complete Powder Hopper for 2F Powder Coating Machine | | *Material | SS304 Stainless Steel | | *Size | 420mm*420mm*600mm | | *Weight | 15KG | | *Process | Seamless welding | | *Dimension(l*w*h) | 420mm*420mm*600mm | | *Capacity | 55L | |

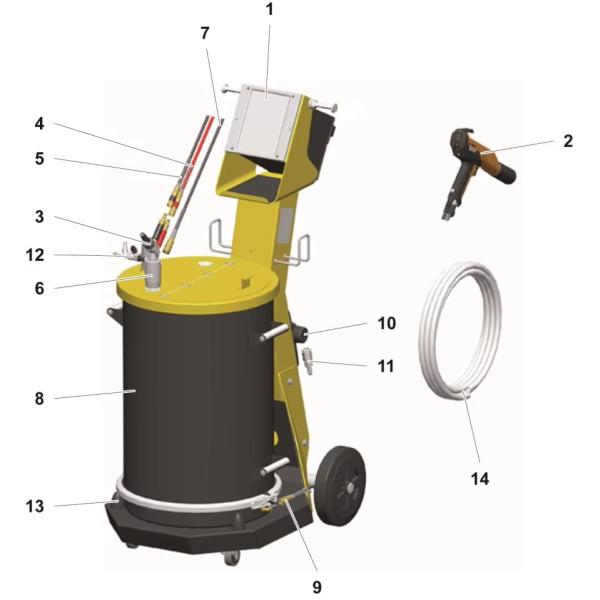

| Flex 2 F –Spare parts list |
| 1 | Star CG13 gun control unit –complete (see corresponding operating manual) | 1009 971 |
| 2 | GM03 manual powder gun –complete (see corresponding user manual) | 1008 070 |
| 3 | Flow IG06 injector –complete (see correspondinguser manual) | 1007 780 |
| 4 | Pneumatic connection for conveying air –complete (incl. Pos. 4.1, 4.2, 4.3) | |
| 4.1 | Quick release connection –NW5, Ø 8 mm, red | 261 645 |
| 4.2 | Nut with kink protection –M12x1 mm, Ø 8 mm | 201 316 |
| 4.3 | Plastic tube –Ø 8/6 mm, red | 103 500* |
| 5 | Pneumatic connection for supplementary air –complete (incl. Pos. 5.1, 5.2 and 5.3) | |
| 5.1 | Quick release connection –NW5, Ø 8 mm, black | 261 637 |
| 5.2 | Nut with kink protection –M12x1 mm, Ø 8 mm | 201 316 |
| 5.3 | Plastic tube –Ø 8/6 mm, black | 1008 038* |
| 6 | PowerClean module** –complete (See operating instructions Select GM03 manual powder gun) | 1007 362 |
| 7 | Pneumatic connection for PowerClean air** –complete (incl. Pos. 7.1 and 7.2) | |
| 7.1 | Quick release connection** –NW5, Ø 8 mm | 1008 027 |
| 7.2 | Hose** –Ø 8/6 mm, black | 103 152* |
| 8 | Powder hopper –complete (without pos. 3) | 1007 130 |
| 9 | Pneumatic connection for conveying air –complete (incl. Pos. 9.1, 9.2 and 9.3) | |
| 9.1 | Quick release connection –NW5, Ø 6 mm | 200 840 |
| 9.2 | Nut with kink protection –M10x1 mm,Ø 6 mm | 201 308 |
| 9.3 | Plastic tube –Ø 6/4 mm, black | 1001 973 |
| 10 | Pneumatic group –complete (see corresponding spare parts list) | |
| 11 | Quick release connection –NW7,8-Ø 10-Ø 26 mm | 239 267 |
| 12 | Airmover –complete | 1002 043 |
| 13 | Rubber buffer –Ø 35x40 mm, M8 mm | 211 664 |
| 14 | Powder hose –Ø 15/10 mm, 6 m | 1001 673*# |
| 15 | Short description | 1007 143 |
| 16 | Operating manual | 1007 142 |
