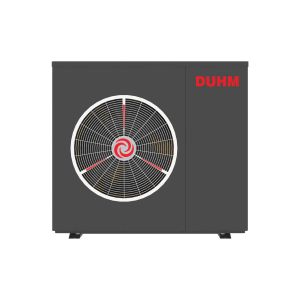

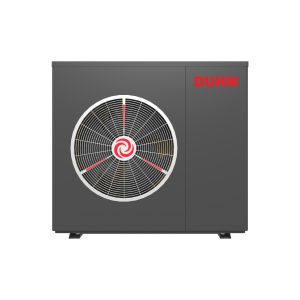

    R32 12kw Full Inverter Heatpump Monoblock Heat Pump For Home App-Controlled

    Ask Lasest Price
    Brand Name : DUHM
    Model Number : WW12VT
    Price : Negotiable
    Certification : CE
    Delivery Time : 25 working day
    Payment Terms : T/T,L/C AT SIGHT
    Supply Ability : 800 Sets/Day
    • Product Details
    • Company Profile

    R32 12kw Full Inverter Heatpump Monoblock Heat Pump For Home App-Controlled

    ModelWW08VMWW10VMWW09VMWW12VMWW14VMWW16VMWW12VTWW18VTWW20VTWW22VT
    Heating Condition-Ambient Temp. (DB/WB): 7/6, Water Temp. (In/Out): 30/35
    Heating Capacity Range (kW) )3.46~7.875.51~10.123.89~9.695.91~12.316.85~14.287.96~16.325.88~12.338.95~18.369.95~20.4010.35~22.44
    Heating Power Input Range (kW)0.69~1.781.08~2.240.74~2.101.16~2.721.35~3.211.58~3.711.16~2.741.76~4.081.96~4.582.06~5.04
    COP (W/W)4.41~4.954.51~5.064.60~5.204.53~5.084.44~5.054.40~5.024.49~5.074.50~5.064.45~5.064.45~5.02
    Cooling Condition-Ambient Temp. (DB/WB): 35/24, Water Temp. (In/Out):12/7
    Cooling Capacity Range (kW)2.16~6.492.78~8.352.54~7.613.38~10.153.92~11.784.49~13.463.39~10.175.05~15.145.61~16.836.17~18.51
    Cooling Power Input Range (kW)0.76~2.680.97~3.410.89~3.101.21~4.261.37~4.751.59~5.471.20~4.231.82~6.202.04~6.952.22~7.49
    EER (W/W)2.42~2.812.45~2.852.45~2.852.38~2.782.48~2.852.46~2.822.40~2.822.44~2.762.42~2.752.47~2.77
    Hot Water Condition -Ambient Temp. (DB/WB): 20/15,Water Temp. (In/Out): 15/55
    Heating Capacity Range (kW)2.93~8.813.77~11.333.44~10.334.59~13.785.33~15.966.09~18.274.60~13.816.85~20.567.61~22.858.37~25.13
    Heating Power Input Range (kW)0.59~2.090.76~2.680.69~2.430.92~3.291.09~3.971.25~4.510.93~3.361.40~5.101.54~5.501.71~6.09
    COP (W/W)4.20~4.954.22~4.954.25~4.984.18~4.944.02~4.884.05~4.854.11~4.904.03~4.884.15~4.924.12~4.88
    ErP Rating (35/55)A+++/A+A+++/A++
    Operating Ambient Temperature ()-25~43
    Max Outlet Water Temperature ()60
    Sound Pressure (1m) (dB(A))51525253545453565656
    Water System Data
    Pipework Size (inch)G1''
    Water Flow (m³/h)1.371.711.542.052.402.742.053.083.423.77
    Water Pressure Drop (max.) (kPa)15202020253020354040
    Circulation Pump Water Head (m)7.57.59.09.09.09.09.011.011.011.0
    Electrical System Data
    Power Supply220-240V/1/50Hz380-415V/3/50Hz
    Max. Power Input (kW)2.723.483.154.285.165.864.376.637.157.92
    Max. Current Input (A)12.4315.9514.4119.5723.6226.837.4311.2812.1613.46
    Fuse Rating (A)16201620323210161616
    Key Components
    Refrigerant R32 (kg)/CO2 Equivalent (Ton)1.8/1.221.8/1.222.2/1.482.2/1.482.4/1.622.4/1.622.2/1.482.8/1892.8/1892.8/189
    GWP675
    CompressorDC Rotary Compressor
    Fan MotorDC Motor
    Circulation Pump1
    Unit Dimension(L*W*H) (mm)1155*505*8551155*505*8551175*475*10501175*475*10501175*475*10501175*475*10501175*475*10501175*505*14001175*505*14001175*505*1400
    Shipping Dimension(L*W*H) (mm)1190*510*9801190*510*9801205*510*11851205*510*11851205*510*11851205*510*11851205*510*11851210*540*15351210*540*15351210*540*1535
    Net Weight /Gross Weight (kg)115/125115/125135/145135/145140/150145/155135/145165/180165/180165/180

    R290/R32 Monoblock Heat Pump For House Heating ,

    Cooling And Domestic Hot Water Supply.
    Providing continuous spacing heating /cooling and hot water supply. The wotech R290 & R32 series multi-function heat pump has a range of benefits which sets it apart from the competition,including the unique designed fan housing. It significantly increased the airflow of the heat pump, making it more efficient, energy-saving, and environmentally friendly.

    High Efficiency Level A+++/A++

    Wotech R290 & R32 monoblock heat pump has passed the Erp A+++/A++ energy class test of Intertek

    FAQ

    1)Are you a manufacturer? Yes, we are a company and factory integrating R&D, production, and sales. At present, Wotech has three production bases in Shunde, Zhaoqing and Heyuan, Covering covering 100, 000 square meters. 2)Why should you select our heat pumps over those of other manufacturers? We have more than 19 years of experience in the heat pump field. Besides, we have a professional technical team, the industry's top heat pump laboratory, and automatic production lines. We can meet your diverse order requirements. 3)Do you offer OEM/ODM customised services? Yes. We are able to produce European-standard heat pumps under your brand according to your special needs. 4)Can you provide a sample service?
    Yes, we are able to provide sample services.
    5)How can we guarantee product quality? With many years of heat pump export experience, we set up a top international quality control system to achieve the belief of making the best quality heat pumps for global user
