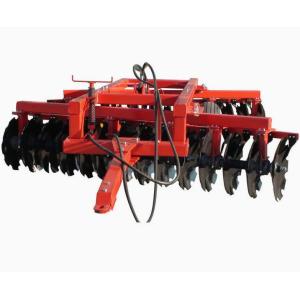

    1BZ series Agricultural Machinery 1bz Hydraulic Heavy Duty Disc Harrow Tractor Implements Disc Harrow

    Ask Lasest Price
    Brand Name : OEM
    Payment Terms : T/T
    Delivery Time : 15-20 days
    Model Number : 1BZ
    Certification : ISO9001
    • Product Details
    • Company Profile

    1BZ series Agricultural Machinery 1bz Hydraulic Heavy Duty Disc Harrow Tractor Implements Disc Harrow

    HYDRAULIC TRAILED HEAVY -DUTY DISC HARROW

    1BZ series agricultural machinery heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.

    Basic Info.

    Model NO.
    1BZ-2.2/2.5/3.0
    Application Field
    Agriculture
    Farming Policy
    Dry Cultivating Machinery
    Power Source
    Tractor
    Operation
    Soil Preparation Machinery, Fixed Operation
    Traction Type
    Traction
    Drive Type
    Tractor Trailed
    Arbor Configuration
    Horizontal Axis
    Color
    Red, Green, Blue, Yellow
    Warranty
    1 Year
    Model
    1bz-2.5
    Working Width
    2500mm
    Working Depth
    200mm
    Qty of Discs
    28
    Total Weight
    1500kg
    Matched Power
    90-130HP
    Disc Size
    26"X6
    Disc Material
    65mn Steel
    Transport Package
    Iron Box, Iron Frame
    Specification
    High quality steel
    Trademark
    YCHS
    Origin
    Yucheng City, Shangdong Province
    HS Code
    8432210000
    Production Capacity
    300sets/Month

    Product Description

    Agriculture machinery Heavy duty hydraulic disc harrow for Massey Ferguson tractor

    PRODUCT INTRODUCTION

    This tractor implments heavy duty offset hydraulic disc harrow for sale is well suitable for heavy clay soil, waste land and weedy field as well,mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.

    • This tractor trailed hydraulic heavy duty disc harrow is trailed for 70-180hp tractor.
    • Own hydraulic system to lift and down the transport wheel freely.
    • High quality of difunctional oil cylinder.
    • Compact and strong structure make the machine have long service life.
    • Widely working width of this heavy disc harrow to be 1.8-5.3m.

    TECHNICAL SPECIFICATION
    Model1BZ-1.81BZ-2.21BZ-2.51BZ-3.01BZ-3.41BZ-4.01BZ-5.3
    working width1800mm2200mm2500mm3000mm3400mm4000mm5300mm
    working depth200mm
    Q'ty of disc16202428323648
    Total weight1160kg1250kg1350kg1430kg1550kg1900kg2500kg
    Matched power70hp80hp90hp100hp120hp150hp180hp
    LinkageTractor Trailed
