150m Wheel Mounted Water Well Borehole Drilling Rig For 32HP Diesel Engine

Machine Introduction

The hydraulic trailer-type water well drilling rig, identified as RCF150W, was developed by Henan Rancheng Machinery Co., Ltd. This multifunctional and efficient drilling equipment is suitable for various applications, including resource exploration, hydrological wells, civil drinking water supply, and agricultural irrigation. The rig utilizes full hydraulic control technology and comes equipped with a BW200 mud pump as well as an air down-the-hole hammer for dual-mode drilling processes. It accommodates drilling diameters ranging from 100 to 250mm, achieving a maximum depth of 150 meters. Its patented composite boom, dual-motor power head, and parallel gearbox hydraulic oil pump system significantly enhance operational efficiency and durability. Meanwhile, the trailer-type three-wheel chassis allows for quick movement and deployment. Key parameters include a 32 HP diesel engine, 2600- 4000 N.m rotational torque, compatibility for seamless switching between mud circulation and the air down-the-hole process, a total machine weight of 2 tons, a compact structure, and both low maintenance costs and high cost-effectiveness. It offers a one-year original equipment warranty and lifetime technical support.

Technical Parameters

Machine Advantages

1.A three-wheel trailer designed for towing pickup trucks or tractors.
2.Each impactor operates at peak efficiency under specific axial pressure and speed conditions. As the number of drill rods increases during drilling, the axial pressure on the impactor rises. Therefore, it is crucial to adjust the positive and negative axial pressure valves during operation to maintain ideal axial pressure and ensure maximum impact efficiency.
3.Features a patented parallel gearbox design, independent oil pump assembly, efficient power distribution, and a unique hydraulic system, offering easy maintenance and low operational costs.
4.Constructed with an integral casting gearbox and dual motor power, delivering high torque, robust durability, and reduced maintenance expenses.
5.Utilizes a patented composite boom design with a compact structure, extended stroke, double-cylinder lifting mechanism, and enhanced support tonnage.

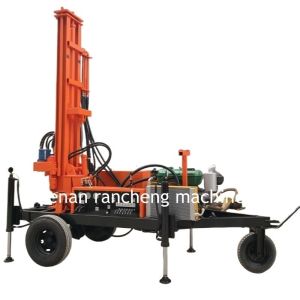

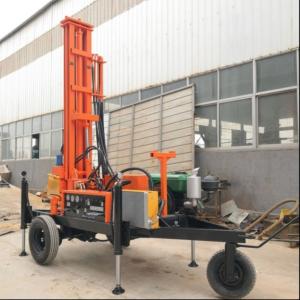

Machine Pictures
