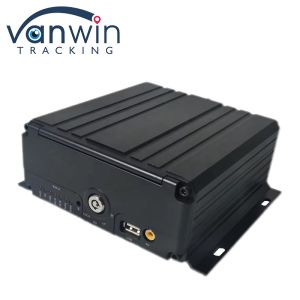

Full Hd 1080P 8CH Mobile DVR SD Card 4G GPS H.265 CMSV6 Bus Truck
DVR Security System
The Full HD 1080P 8CH H.265 Mobile DVR is a high-performance,
compact, and reliable digital video recorder designed for mobile
surveillance applications. Equipped with advanced H.265 video
compression technology, this DVR delivers superior video quality
while significantly reducing storage and bandwidth requirements.
With support for up to 8 channels, it is ideal for use in vehicles,
fleet management, and other mobile environments where reliable
recording and monitoring are essential.
1080P 8CH Mobile DVR Key Features
1.High - Definition 8 - Channel Recording:
Capable of recording in Full HD 1080P across 8 channels
simultaneously. Each channel captures sharp and detailed video,
providing comprehensive surveillance coverage of the vehicle's
interior, exterior, and blind spots. The high - resolution footage
is crucial for identifying incidents, driver behavior analysis, and
passenger safety monitoring.
2.H.265 Compression Technology:
Utilizes advanced H.265 video compression, which significantly
reduces file sizes without sacrificing video quality. This allows
for more efficient storage and transmission of video data. With
H.265, you can store more hours of high - definition footage on the
SD card, and the 4G data usage for remote access and live streaming
is minimized.
3.4G Connectivity and Real - Time Monitoring:
Equipped with 4G connectivity, the DVR enables real - time video
streaming and remote access. Fleet managers or vehicle owners can
view live camera feeds from anywhere in the world using a
compatible mobile app or web - based CMSV6 platform. This feature
is invaluable for immediate response to incidents, such as
accidents or security threats.
4.GPS Tracking Integration:
Built - in GPS module accurately tracks the vehicle's location,
speed, and route. The GPS data is seamlessly integrated with the
video recordings, providing a complete picture of the vehicle's
movements. This information can be used for route optimization,
driver performance evaluation, and ensuring compliance with
delivery schedules.
User-Friendly Interface:Features an intuitive interface for easy setup, operation, and
playback
1080P 8CH Mobile DVR Main Specification
| Operating System | Linux |
| Language | English, Chinese or Customized language. |
| Video Compression | H.265 |
| OSD | Support time, date, vehicle ID, image, etc. |
| GUI | OSD Interface | Can external connect to LCD and set the system specifications by
remote |
| Video | Video Input | 8CH 1080P/720P AHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω |
| | Support 1CH full screen and 8CH division. |
| Preview | Single/8CH Pictures Preview, support full screen of event trigger
or back view of car reversing |
| Recording Resolution | Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 720P |
| Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the
lowest. |
| Video Rate | PAL:100 fps,CCIR625line,50 scenes |
| NTSC:120 fps,CCIR525line,60 scenes |
| CIF:256Kbps - 1.5Mbps,8 grades image quality for optional |
| HD1:600Kbps - 2.5Mbps,8 grades image quality for optional |
| D1:800Kbps - 3Mbps,8 grades image quality for optional |
| 720P:800Kbps - 4Mbps,8 grades image quality for optional |
| 1080P:2Mbps -6Mbps,8 grades image quality for optional |
| | Recording Mode | Default automatic video recording, support ignition video
recording, schedule video recording, alarm video recording, etc |
| Audio | Audio Input | 8CH Aviation connector inputs |
| Audio Output | 1CH Aviation connector output, Output level:1V - 2V |
| Compression format | G.726, Speed for 8KB/s |
| Alarm Input | 4CH level alarm inputs |
| Alarm Output | 1CH level signal output |
| Communication Interface | Optional for 1CH RS232 or 1CH RS485 |
| Wireless Transmission | Support built-in 3G wireless transmission, WCDMA, CDMA2000,
TDD-LTE, FDD-LTE. |
| Location /G-sensor | Support built-in GPS/BD module, built-in G-sensor, can analysis and
playback for vehicle driving route |
| Video Storage | Storage | Support a 2T 2.5 -inch HDD and 1 256G SD card storage |
| Upgrade Method | Support SD card local upgrade, remote upgrade automatically |
| File Format | H.264 general video format |
| File System | FAT32 exclusive file system |
| | Playback | Support at max 8 channel synchronous playback, suspend, forward,
backward |
| Support 2/4/8/16 times speed forward or backward |
| Expansion functions | TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ
control, fuel sensor, etc |
| Power and | Power Management | Self-adaptive wide voltage input, with protect functions for
overload, undervoltage, short circuit, reversing connection, etc |
| Consumption | Support time setting startup/shutdown, delayed power off function |
| Power and Consumption | Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V/1.5A,+5V/1.5A |
| Power-off Protection | UPS technology to protect all recorded information automatically
and make sure the files undamaged in case of sudden power off. |
| Consumption | Normal working < 14W, standby < 0.5W |
1080P 8CH Mobile DVR Applications
- Fleet management and vehicle tracking
- Public transportation (buses, trains, taxis)
- Emergency vehicles (ambulances, police cars)
- Logistics and delivery services
- Personal vehicle security
1080P 8CH Mobile DVR Player for MDVR
FAQ:1080P 8CH Mobile DVR
Q1.What is H.265 video compression, and why is it important?
A1.H.265 (also known as HEVC) is an advanced video compression
technology that reduces file sizes by up to 50% compared to H.264,
while maintaining the same video quality. This means you can store
more footage and use less bandwidth, making it ideal for mobile and
remote monitoring.
Q2.How many cameras can this DVR support?
A2.This DVR supports up to 8 cameras, allowing you to monitor multiple
angles and areas simultaneously.
Q3.Can I access the DVR remotely?
A3.Yes, the DVR supports remote access via 3G/4G networks. You can
view live footage, playback recordings, and manage settings from
your smartphone, tablet, or computer using the dedicated app or
software.
Q4.Does the DVR have built-in GPS?
A4.Yes, the DVR features an integrated GPS module for real-time
location tracking and route monitoring. This is particularly useful
for fleet management and logistics.
Q5.What storage options does the DVR support?
A5.The DVR supports multiple storage options, including HDD, SSD, and
SD cards. You can choose the storage solution that best fits your
needs and expand it as required.
Q6.What power supply does the DVR require?
A6.The DVR operates on a wide voltage input range of 9-36V DC, making
it compatible with most vehicle power systems.
