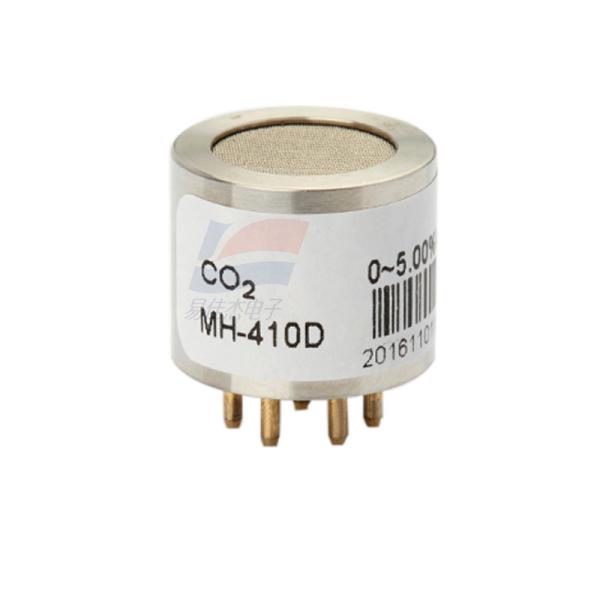

    YJJ MH-410D Infrared Electrochemical CO2 Gas Sensor For Industrial Process And Safety Monitoring

    Product Description:

    MH-410D Infrared Electrochemical CO2 Gas Sensor For Industrial Process And Safety Monitoring


    Features:

    MH-410D infrared gas sensor is a general purpose, intelligent and miniature sensor. The infrared sensor uses non-dispersive infrared (NDIR) principle to detect CO2 in the air. It has good selectivity, no oxygen dependence, stable performance and long life. Built-in temperature compensation. The infrared sensor is a compact and high-performance infrared sensor made by combining mature infrared absorption gas detection technology with micro-machining and sophisticated circuit design.

    Product model MH-410D

    Detection gas carbon dioxide

    Operating voltage 3.6 ~ 5 V DC (need to be powered by safety grid)

    Average current < 85 mA

    Measurement range 0 ~ 10%Vol (see Table 2)

    Interface level 3.0V


    Output signal UART

    0.4 ~ 2V (need to go through the safety gate output)

    Preheating time: 3 min

    Response time T90 < 30 s

    Operating temperature -20 ~ 60 ℃

    Working humidity 0 ~ 95%RH (non-condensing)

    Overall dimensions Φ20 mm× 22.4mm

    Weight 35 g

    Life span > 5 years

    Protection class IP54

    Power end, communication end

    Intrinsic safety parameter Ui=7.5VDC, Ii=265mA,

    Pi=0.5W, Ci= 10μF, Li=0Mh


    Specifications:

    Operating temperature-20℃ ~ 60℃
    Preheating time3 min
    Response time< 30 s
    Working humidity0 ~ 95%RH (non-condensing)
