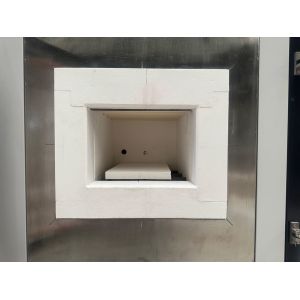

    Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM

    Ask Lasest Price
    Model Number : Mbf22-10
    Supply Ability : Customized
    Certification : ISO
    Brand Name : Chitherm
    Price : Negotiable
    Delivery Time : Customized
    Payment Terms : Customized
    • Product Details
    • Company Profile

    Atmosphere Electric Box Furnace Muffle Furnace With Nitrogen Gas OEM

    Industrial Range Mbf22-10 Atmosphere Box Furnace Nitrogen Muffle Furnace 1000 ordm C for High Temperature Applications
    1. Applications:
    Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.


    1000º C Mbf22-10 Atmosphere Box Furnace Nitrogen Muffle Furnace
    2.
    Mainly Specifics:
    1. Rated Temp:850ºC
    2. Max Temp: 1000ºC
    3. Effective Dimensions: 330 × 200 × 330mm(W×H×D)
    4. Heating Method: ceramic tube-encased silicon carbide rod.
    5. Process Atmosphere: Nitrogen
    6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
    7. Temperature Uniformity: better than ±3ºC .
    8. Thermocouple: Type N
    9. Temperature control points: 1 points
    10. Temperature measurement points: 1 point
    11. Process Steps: 4×16 steps
    12. Oxygen Content: ≤ 20ppm+gas supply oxygen content
    13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
    14. Max Heating Power: 12kW
    15. Surface Temperature Rise: ≤ 40ºC
    16. Weight: about 650kg
    17. Furnace Dimensions: about 1300*1900*1160mm (W×H×D);
    18. Appearance Color: light gray
    3. Delivery List
    ItemNoteQTY
    Basic CompositionsFurnace1 PC
    Certificates of InspectionFurnace and major purchased components1 Set
    Technical DocumentsFurnace specifications, technical documents of major purchased components, etc1 Set
    Key Partsceramic tube-encased silicon carbide rodSiC silicon carbide rod1 Set
    Touch Screen1 PC
    Temperature ControllerAzbil1 Set
    micro-oxygen analyzer1 Set
    Sparessilicon carbide rod1 PC

    4. Facility Requirements
    4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
    airflow disturbance.
    4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 2 - 5m3 /h.
    4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
    than 10m3 /h;
    4.5 Power conditions: capacity greater than 16kVA, 3 phases 5 lines, voltage 220/380V, frequency
    50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
    4.6 Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m2.

    1000º C Mbf22-10 Atmosphere Box Furnace Nitrogen Muffle Furnace
