Product description

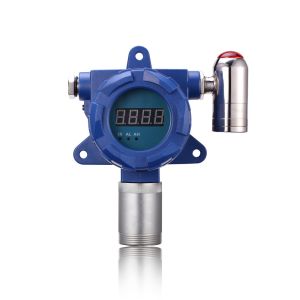

YT-95H/YT-95H-A series detectors are designed for industrial gas
monitoring. They can detect multiple gases such as VOC, LEL, O₂,
and toxic gases using different detection principles. Measurement
range and resolution are customizable for high - precision
detection.
These detectors have diverse output signals. The 3 - wire 4 - 20
mA, RS485, and relay outputs work with various control systems. The
relay output controls external equipment for quick safety response.
Remote operation is easy with the infrared controller. Data can be
monitored on a PC, and wireless transmission options help users get
real - time data. The die - cast aluminum housing has an IP65
rating, ensuring durability in harsh environments. With short
response time, high repeatability, and low zero drift, they're
reliable for long - term use.
Product advantage
- Online monitoring with sound/light alarm(Optional)
24h continuously monitoring, data will real-time display.High/low
alarm with sound and light, sound >90dB, alarm point is
settable.
- Convenient remote control
With infrared ray controller, which can remote control alarm point
settings, zero calibration, and address modification.
- Diversified output signals
It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out.
To be compatible with different control systems.
The relay output supports control external devices such as horns,
alarm lights, fans etc.
Through PC software can remote monitor the data.Wireless data
transmission including Lora, 4G (Optional)
Die-cast aluminum housing, strong and durable;IP65 protection
degree,water-proof, dust-proof,explosion-proof；
company profile
Shenzhen Yuante Technology Co., Limited was officially founded in
2010. Over the past 16 years, it has been deeply engaged in the
design, production, and sales of high - end gas detection equipment
and systems. For the core product of gas detectors, the company has
created a complete industrial chain in line with Industry 4.0
standards through vertical integration. According to different
standards such as ATEX and IECEx in industries like Oil, Medicine,
and Electronics, it provides customized system integration
solutions. Relying on independently developed advanced algorithms
and sensing technologies, combined with the industry - university -
research joint innovation model, the company's products have
reached the international leading level in key performance
indicators such as accuracy and response time. Looking ahead,
Yuante Technology will continue to drive changes with technology
and lead the development of the industry in the fields of
industrial Internet of Things and intelligent safety detection.
certifications
FAQ
specification
| Gas type | Specified according to application |
| Sensor type | Specified according to application |
| Accuracy | ≤±2%FS(Specified according to different sensor) |
| Measure Range | Specified according to application |
| Resolution | Specified according to application |
Display: | 4 digits Nixie tube display |
Explosion-proof
grade | Ex d IIC T6 Gb |
Temperature | –20℃～50℃ |
Power | 12-36V DC |
Thread Size | M45*2mm |
Zero shift | ≤±1%(F.S./year) |
Dimensions | 180×150×90mm |
| Weight | ≤1.6kg |
Humidity | 0-95%RH(nocondensation) |
