Description

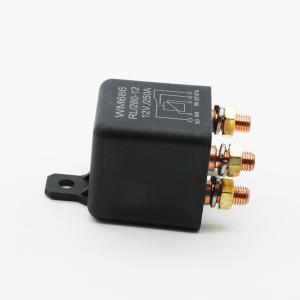

* Heavy Duty 12V Continuous Relay with 5-Pin SPDT (Single Pole Double Throw).
* 250 Amp High Current Carrying Capacity 12V Automotive Relay.
* Normal Open / Normal Closed On/Off Dual Control Duty Relay.
* This continuous power relay is compatible with all automobiles and devices equipped with a 12 Volt DC (under 250A) power source.
* 5 pin relay is perfect for split charging two batteries in variety automotive and marine applications, for any vehicle needing a high current continuous relay.
*Characteristics: Temperature Range: -30℃~+80℃
*Vibration Resistance: 10-55Hz, 1.5mm
*Shock Resistance: Operation Extremes 10g, Damage Limits 100g
*Humidity: 40%-80%
*Insulation Resistance:100mΩ Min at 500VDC
*Dielectric Strength Between Open Contacts:500VAC (for one minute/sec)
*Between Contact and Coil: 750VAC (for one minute/sec)
Contact Data:
Contact Material: AgSnO12
Contact Form:1Z
Contact Ratings: No:250A 14VDC
Contact Resistance: 100mMax at 6VDC 1A
Max Switching Current: 250A
Max Switching Voltage: 75VDC
Max Switching Power: 3500W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/minute)
Life Expectancy Machanical:10,000,000 Operations
Coil Specification:
Normal Voltage (VDC): 12
Coil Resistance(4.8Ω): 30
Max Operate Voltage (VDC): 6.0-8.0
Mix Release Voltage (VDC): 1.2-3.6
Max Applicable Voltage (VDC): 15.6
Size(mm)
Related types of auto relay
FAQ
1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?
A:First of all please tell us as soon as possible after we send a new one to you immediately but please send the broken product to
us.You don't have to worry about the carriage charge we will pay for that.
2Q:Are we a trader or manufacturer?
A:Both
3Q:Why do you have choose us?
A:High quality. Competive price. Fast shipping.
4Q:What is approval?
A:ROHS/UL of 12V 24V 250A Continuous Type High Power Motorcycle Battery Control Switch Terminal Automotive Starter Relay Socket Car Relay
