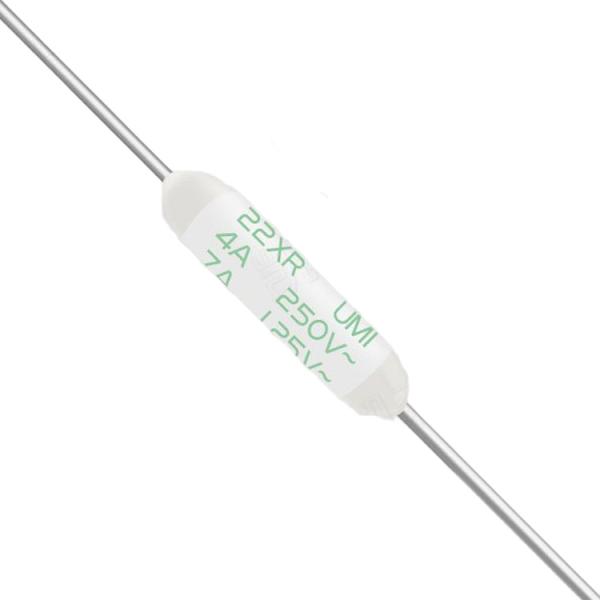

    UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

    Ask Lasest Price
    Brand Name : UMI
    Model Number : 22 series
    Price : USD0.15~0.2/pc
    Payment Terms : T/T
    Supply Ability : 100K pieces per week
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

    UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
    Product Description:
    A thermal fuse, also known as a thermal cutoff or thermal link, is a safety device used to protect electrical appliances and circuits from overheating. It operates by interrupting the electrical current when the temperature exceeds a predetermined threshold, thereby preventing potential fire hazards or damage to the equipment.

    Features:
    • It is a non-resettable thermal fuse, which uses a fusible alloy as a thermal element.
    • It is the smallest thermal fuse in the world. 1.4mm diameter.
    • It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
    • Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
    • It has excellent thermal properties.
    • It uses an insulated container.
    Wire lengthDimensions (mm)
    ABCDE
    standard11.5±0.537±3.03.3±0.23.6 or below1.0±0.05
    Long11.5±0.567±3.03.3±0.23.6 or below1.0±0.05

    Specification:

    ModelTemperature rating
    Tf(℃)
    Operating temperature
    (℃)
    Maintain temperature
    Th(℃)
    Maximum operating temperature
    (℃)
    Maximum limit temperature
    Tm(℃)
    Current rating
    (A)
    Rated voltage
    (V)
    22YR7672±356492004.0AC250
    22ER108104±389812004.0AC250
    222R115112±392892005.0AC250
    22XR133129±3117912004.0AC250
    22MR139135±31221142002.5AC250
    22JR145141±31251152003.5AC250
    22HR221218±31951902503.0AC250


    Certifications:

    ModelGet certified
    PSEULC-ULVDESelf-certificationKC
    22YRJET5267-32001-1013E50082E5008240009812
    2020980205000086
    (AC250V)
    SU05029-9002
    (AC250V)
    22ERJET5267-32001-1012E50082E5008240009812
    2020980205000086
    (AC250V)
    SU05029-8003
    (AC250V)
    222RJET5267-32001-1004E50082E5008240007525
    2020980205000104
    (AC250V)
    SU05029-8003
    (AC250V)
    22XRJET5267-32001-1014E50082E5008240009812
    2020980205000086
    (AC250V)
    SU05029-8001
    (AC250V)
    22MRJET5267-32001-1005E50082E5008240009812
    2020980205000085
    (AC250V)
    SU05029-8001
    (AC250V)
    22JRJET5267-32001-2002E50082E5008240007525
    2020980205000099
    (AC250V)
    SU05029-8001
    (AC250V)
    22HR------

    Working Principle

    When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.

    UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

    Various types of Thermal Fuse Links are available
