Product Description:
Intelligent Control System
Adopting PLC electro-hydraulic proportional control rapid setting
agent system to achieve automatic matching of rapid setting agent
and concrete dosage, with a wide range of dosage. The electronic
control system integrates Profinet bus technology to monitor the
real-time status of key components such as the engine and hydraulic
pump, ensuring operational stability.
Flexible Homework Design
The telescopic rotary robotic arm covers a working range of 2 ×
6.5m width, 8m height, and 2.5m depth, suitable for narrow alleys
and no construction blind spots. Supports wireless remote control
operation, allowing the operator to stay away from the work surface
and enhance safety.
Features:
- Weight: Around 11t
- Shotcrete Distance Upward: Up To 8.5m
- Shotcrete Capacity: 20 Cubic Meters Per Hour
Technical Parameters:
| Ground Clearance | 385mm |
| Air Compressor | 45Kw |
| Shotcrete Distance Upward | Up To 8.5m |
| Cable Reel Length | 80m |
| Weight | Around 11t |
| Engine | Cummins |
| Shotcrete Capacity | 20 Cubic Meters Per Hour |
| Arm Frame Form | 4 Sections And 3 Levels Of Scalability |
Applications:
Improvement of Construction Quality
The implementation of high-pressure close range spraying technology
results in a significant enhancement of the compactness and
strength of concrete, yielding a comprehensive rebound rate of less
than 15%.
Environmental Protection and Safety
Comparing the efficiency of high-pressure close range spraying
technology to traditional manual operations, the former operates at
a rate 2-3 times faster, especially beneficial for construction
involving multiple facets, leading to reduced equipment investment
costs.
Moreover, remote operation capabilities contribute to a decrease in
personnel requirements and labor intensity, indirectly resulting in
savings on construction expenses.
Support and Services:
The Product Technical Support and Services for the Robotic
Shotcrete Machine include:
- Expert consultation on machine operation and maintenance
- On-site training for operators
- Remote troubleshooting and diagnostics
- Spare parts availability and delivery
- Software updates and technical documentation
Packing and Shipping:

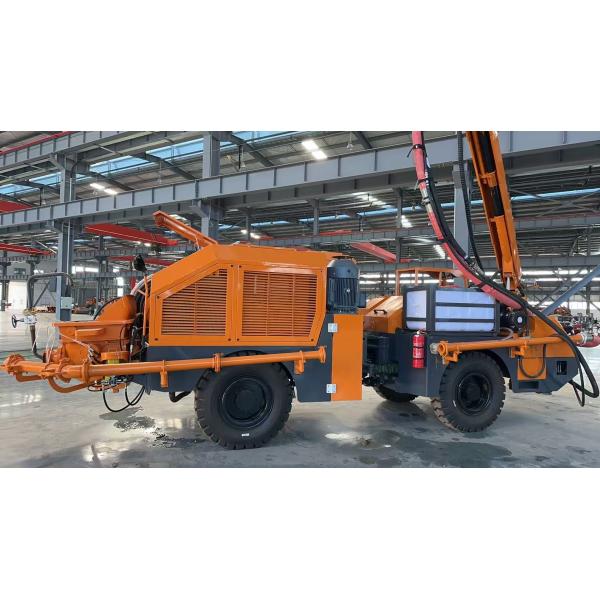

Product Name: Robotic Shotcrete Machine
Description: Our Robotic Shotcrete Machine is designed for
efficient and precise application of shotcrete in construction
projects.
Package Includes: Robotic Shotcrete Machine, User Manual, Spare
Parts Kit
Shipping Details: This product will be securely packaged to ensure
safe delivery. Shipping will be handled by our trusted carriers to
guarantee timely arrival.
