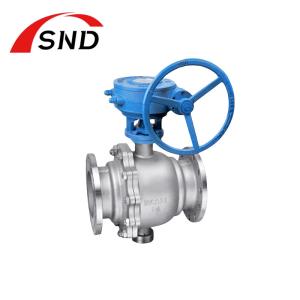

SS304 316L Cast Steel Ball Valve DN500 For Oil Industry Threaded
Connection
Introduction to cast steel ball valve
The opening and closing parts (ball) of cast steel ball valve are
driven by the valve stem and rotate around the axis of the valve
stem. It is mainly used to interrupt or cut off the medium in the
pipeline, and can also be used for fluid regulation and control.
Among them, the hard-sealed V ball valve has the strongest shear
force between its V-shaped ball core and the metal valve seat with
hard alloy surfacing, which is particularly suitable for media
containing fibers, tiny solid particles, etc.
Ball Valve Specifications
1.Designed and manufactured in compliance with BSEN 593, MSS SP-67,
and API 609 standards.
2.Compatible with ANSI 125/150, BS4504, and DIN flange connections.
3.Available in size range: NPS 2" to 52".
4.Pressure ratings include PN10/16 and ANSI 125/150/300/600/900.
5.Offered in materials such as Iron, Steel, Stainless Steel,
Duplex, and Bronze. Seat options include both resilient and metal
types, with various trim materials to meet different service
requirements.
6.Fire-safe design available upon request, following API 608/API
6FD standards.
7.Optional design compliant with MSS SP 01-75 upon request.
8.Operation methods include lever, worm gear, electric, pneumatic,
and hydra-pneumatic options.
Ball valve features
| Product Name | Ball Valve |
| Valve body material | SS304, 316L, cast steel, cast iron |
| Connection | threaded,flange,clamp,weld |
| Valve seat | PTFE, PPL, metal |
Company Profile
SND has been producing and selling metal goods for about 20
years.By using manufacturing techniques including sand casting,
lost wax casting, lost foam casting, and precision machining, the
company has been supplying goods made of materials like cast iron,
steel, stainless steel, aluminum, etc. Additionally offered are
surface finishing and assembly services.
Our company has successfully created products in a variety of
industries, including automotive, rail transportation, agricultural
machinery, chemical, energy, electricity, water, air compressor,
and construction, thanks to our consistent efforts over the past
few years.
Our factories' ISO9001-accredited quality control systems guarantee
a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation,
tensile/yield strength, and other inspections are carried out as
part of routine production procedures.
