Product Description
PTC-XD-PRO The system specially designed for outdoor fix installation, it integrates UAV detection and direction finding. The detector can simultaneously perform multi-target direction finding and positioning, enabling precise localization and trajectory tracking of target UAVs and Pilots. Utilizing radio interference and State-of-Art blocking technology, it effectively cut off the UAV's video transmission, remote control, and navigation links, forcing the UAV to return or land immediately. This system can support to work with UAV Jamming device, so it can block all the drones off within low-altitude airspace, enhancing the fine-grained monitoring capabilities of controlled areas.
This device is suitable for low altitude security in scenarios such as large-scale event support, public security patrols, border defense, accompanying protection of political figures, militar-y management zones, power and petrochemical parks, and airports. It can work offline on a single machine, flexibly and quickly deploy, and respond flexibly, meeting the needs of various scenarios.
Detector Pamarmeters
| Number | Index | Parameter | Notes |
| 1 | Detection and identification of drone types | DJI series drones, FPVs, Autel, Xiaomi, Yuneec, Hubsan, Powervision, Tello drones etc. | |
| 2 | Detection frequency band | 100MHz~6GHz | |
| 3 | Detection distance | 2~5km | Depending on the environment |
| 4 | Detection height | 0m~1000m | |
| 5 | Number of targets that can be detected simultaneously | ≥20sorties | |
| 6 | Detection success rate | ≥97% | |
| 7 | Identify response time | ≤3s | |
| 8 | Direction Finding Frequencies | 400-6000mhz | |
| 9 | Direction Finding Range | 1~5km(2GHz-6GHz) 200m~1km (400MHZ~2GHZ) | Affected by frequencies, model and environment |
| 10 | Direction Finding Target number | > 3 drones | Affected by frequencies, model and environmentt |
| 11 | Direction Finding Accuracy | 3°~10° | Affected by frequencies, model and environment |
| 12 | DF refresh rate | 10~30times/Minutes | Affected by frequencies, model and environment |
| 13 | Positioning accuracy | ≤10m | |
| 14 | Number of positioning tracks | >5 sorties | meantime |
| 15 | Positioning model by single detector | DJI mavic,air,mini,FPV,avata. etc | |
| 16 | Scan range | 100MHz~6GHz | |
| 17 | Detection success rate | ≥97% | |
| 18 | Identify response time | ≤3s | |
| 19 | Waterproof level | IP65 | |
| 20 | Dimension | Φ*H(690mm*575mm)±2mm | |
| 21 | Weight | ≤20kgs | |
| 22 | Power Supply | AC-110-240V, DC-12V | |
| 23 | Power Consumption | 50W | |
| 24 | Operation temperature | -40~65℃ | |
| 25 | Detection Mode | Passive 360 degree detection | |
| 26 | Support the software controlling, software language: English/Russia/Spanish for option |
Product Advantages
Detecting Function
1)Drone detection: It can detect and identify the brand, model, frequency, and other information of invading drones.2)Drone positioning[1]: It can locate the position information of the DJI series of drones, and display real-time drone position (longitude and latitude), azimuth information, distance information (distance from the drone to the location of
the equipment), speed, height, etc.
3)Pilot Positioning[2]: It can locate the position information of the Pilot of the DJI unmanned aerial vehicle, and display
the real-time position (longitude and latitude), azimuth information, and distance information of the flying hand
(remote control) relative to the position of the equipment.
(Remarks: work for Some models such as DJI, Air, Mini, FPV, and Avata)
4) UAV Direction Finding: Single detector support direction finding for target UAVs; real-time azimuth display on electronic
maps; Supports simultaneous direction finding for ≥3 targets.
5) RID Function: The device has the ability to receive and decode RID information, to obtain information such as the
drone location, pilot location, and SN number of drone through RID decoding.
Remarks: Valid only for drones that have RID broadcasting capabilities and are turned on for use.
6) Spectrum Scanning: 100MHz~6GHz spectrum scanning, supporting spectrum graph andwaterfall graph display.
7) Unique identification code recognition[3]: It can identify the unique serial number of the DJI series drone and
confirm the unique identification information of the drone.8) Integrated detection and strike: The device can
automatically counter attack the drone after detecting and identifying it.
8) Multi target trajectory tracking[4]: Capable of achieving multi target drone positioning and tracking, while
displaying multiple drone flight trajectories.9) Standard API Interface: Data integration with specified management systems. 10) WIFI model library: After adding, the system can normally detect the drone with the wifi signal.11) Electronic map: Electronic map switching, including A-map, Baidu and Google (offline), etc.12) Integrated design: The equipment adopts integrated design, more easy for installation. System Features
- Long Direction Finding Distance: In an open environment, the direction finding distance may up to 4km.
- Wide Direction Finding Frequency Band: The device supports UAV direction finding in the frequency range of 400MHz~6GHz.
- Passive detection: The equipment does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly;
- Three all-around readiness: The equipment operates continuously day and night for 7*24 hours, 24/7 (suitable for complex electromagnetic environments and harsh weather environments), and provides comprehensive (360° detection of drone intrusion) security in the core area;
- Black and white list[5]: It can distinguish between cooperative and non-cooperative drones, and the device will not give an alarm when detecting cooperative drones. It can also label cooperative drones with trust. Remarks: mostly work for DJI regular models.
- Intrusion alarm: When a drone invasion is detected, an audible or visual alarm will be triggered.
- Trajectory playback: Support drone flight trajectory playback, assist security personnel in analyzing historical drone flight data.
- Detection Record: The detection record list can retain historical detection records, including multidimensional information such as drone serial number, model, frequency, etc.
- Data and information visualization analysis: Support UAV detection and flight data statistical analysis, which can be presented by visualization methods such as thermal diagram and Line chart;
- Electronic map: Supports electronic map switching, including Gao de, Bing, Baidu, Google offline.
Drone Jamming System for option | Output Channel | Working Frequency | Output Power | In-band Flatness |
| CH1 | 900-930MHz | 100W | ±0.5dB |
| CH2 | 1160-1300MHz | 100W | ±0.5dB |
| CH3 | 1550-1610MHz | 100W | ±0.5dB |
| CH4 | 2400-2480 MHz | 100W | ±0.5dB |
| CH5 | 5150-5250MHz | 100W | ±0.5dB |
| CH6 | 5725-5850MHz | 100W | ±0.5dB |
| cH7 | 400-450MHz | 100W | ±0.5dB |
| CH8 | 1400-1440MHz | 100W | ±0.5dB |
| The working frequencies can be customized as per your request. |
| Working Channels | 8CH |
| Output Power | 800W |
| Working Current | AC220V or AC110V or DC48V or DC24V |
| Waterproof Grade | IP65 |
| Operation Temperature | -30 to +55 ºC |
| Jammer Dimension | 500*450*235mm |
| Net Weight | About 35kgs |
| Mounting | Wall mounting as standard, pole mounting for option |
| Protection | VSWR protection, PA will off when VSWR exceeds 5:1 |
| TEMP protection, Auto shut off when over 75 ºC, will restart work when the temperature reduce to 55 ºC. |
| Working hours | 24/7/365days |
| Frame | housing metal and vandal-proof |
| Power Supply | AC-110V/220V |
Detailed Photos
Installation Instructions

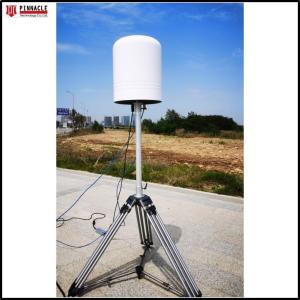

Can be installed in a mobile tripod or Vehicle
Product Application
Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Ar-my Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities
etc.
