Product Description:
Medium voltage power cable for static application in ground, within
and outside facilities, outdoors, in cable canals, in water, in
conditions where cables are not exposed to heavier mechanical
stress and tensile strain.
Features:
- Product Name: Medium Voltage Power Cables
- Number Of Cores: 1-3
- Size: 25~630mm2
- Conductor: Copper/Aluminum
- Insulation: XLPE
- Armour:Three cores:Galvanized Steel Wire(SWVA)
- Screen: Copper wires
- Outer sheath: PVC (Polyvinyl chloride), PE( Polyethylene), LSZH(Low Smoke Zero
Halogen)
Standard:
AS/NZS 1429.1
Technical Parameters:
Aluminum copper
| mm2 | mm | mm | mm | mm2 | no x mm | mm | mm | mm | mm |
| 35 | 6.9 | 3.4 | 14.9 | 23.8 | 14x0.85 | 18.2 | 42.6 | 2.5 | 47.6 |
| 50 | 8.1 | 3.4 | 16.0 | 32.3 | 19x0.85 | 19.3 | 45.2 | 2.5 | 50.2 |
| 70 | 9.6 | 3.4 | 17.6 | 46.0 | 27x0.85 | 20.9 | 48.9 | 2.5 | 53.9 |
| 95 | 11.4 | 3.4 | 19.3 | 61.3 | 36x0.85 | 22.6 | 52.8 | 2.5 | 57.8 |
| 120 | 12.8 | 3.4 | 20.7 | 68.1 | 40x0.85 | 24 | 55.8 | 2.5 | 60.8 |
| 150 | 14.2 | 3.4 | 22.1 | 68.1 | 40x0.85 | 25.4 | 59.0 | 2.5 | 64.0 |
| 185 | 15.7 | 3.4 | 23.6 | 68.1 | 40x0.85 | 26.9 | 62.3 | 2.5 | 67.3 |
| 240 | 18 | 3.4 | 25.9 | 68.1 | 40x0.85 | 29.2 | 67.4 | 3.15 | 73.7 |
| 300 | 20.1 | 3.4 | 28.3 | 68.1 | 40x0.85 | 31.6 | 72.6 | 3.15 | 78.9 |
| 400 | 23 | 3.4 | 31.1 | 68.1 | 40x0.85 | 34.6 | 79.8 | 3.15 | 86.1 |
| 500 | 26.5 | 3.4 | 34.7 | 68.1 | 40x0.85 | 38.2 | 87.6 | 3.15 | 93.9 |

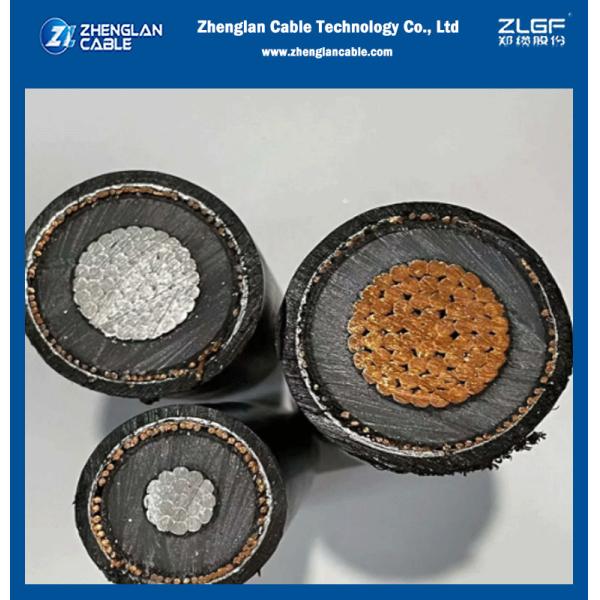

Image:
Support and Services:
The Medium Voltage Power Cables product technical support and
services include:
- Assistance with cable selection and specification
- Installation and commissioning support
- Troubleshooting and fault analysis
- Maintenance and repair services
- Consultancy services for system design and integration
Packing and Shipping:
Product Packaging:
- The medium voltage power cables will be packed in strong and sturdy
wooden reels to ensure safe transportation.
- The reels will be wrapped with shrink wrap to protect the cables
from dust, moisture, and other external factors.
- The cables will be labeled with all necessary information,
including product name, size, length, and quantity.
Shipping:
- Shipping will be arranged by our team and will be delivered by a
reliable and trusted shipping carrier.
- The medium voltage power cables will be loaded onto a flatbed truck
and secured properly to prevent any damage during transit.
- Customers will be provided with a tracking number to monitor the
shipment and ensure on-time delivery.
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd., formerly known as HENAN
Zhengzhou Cable Co., Ltd., is one of the large-scale backbone
enterprises in China's wire and cable industry. The company's
registered capital is about 4 million 6 thousand yuan, and its
headquarters are located on the 49th floor of the South Tower of
the Greenland Center of Zhengzhou high railway station (Petronas
Twin Towers). The factory is located in the Zhengzhou Cable Science
and Technology Industrial Park of the Wuzhi industrial area. It is
a modern industrial park integrating advanced research and
development technology and production technology.
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the
samples will be ready for delivery in 3-7 days. The samples will be
sent to you via express and arrive in 3~7 days. You can use your
own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept a T/T 30% deposit and a 70% balance before
delivery as the main payment terms, and other payment can also be
negotiated. Trade assurance is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually, it needs 15 working
days after you get your payment.
5. What is your MOQ?
Generally it is 1000m.
