    1.1 inch TFT LCD | 135x240 SPI interface | ST7789H2 Controller

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H011A1QCIST3N10
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    1.1 inch TFT LCD | 135x240 SPI interface | ST7789H2 Controller

    1.1 inch TFT LCD | 135x240 SPI interface | ST7789H2 Controller

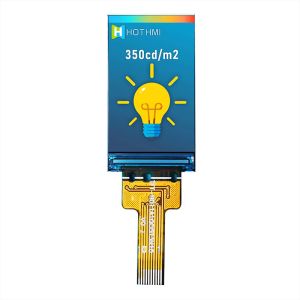

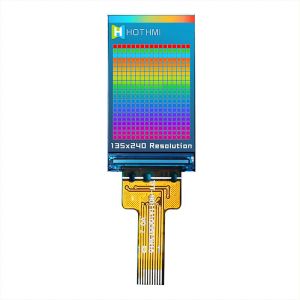

    This 1.1 inch TFT LCD TFT-H011A1QCIST3N10 is a 1.1 inch bar LCD module with a resolution of 135x240, built-in ST7789H2 controller, optional touch screen, high picture quality, IPS wide viewing angle, support 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 1.8V~2.8V voltage, and supports vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms.


    This 1.1 inch TFT LCD is irreplaceable in scenarios with high requirements for miniaturization and portability, and may further penetrate into emerging fields such as smart clothing and micro robots in the future. Application areas include: wearable devices, medical and health equipment, consumer electronics, industrial and instrumentation, Internet of Things (IoT) devices, automotive electronics, education and toys, micro instruments and innovative products.


    This 1.1 inch TFT LCDl is an SPI interface display with ST7789H2 control chip. The same series also has a MIPI interface model TFT-H011A1QCIFT5N15 display. At the same time, we provide HTM-H011A1-SPI-V0 with a driver module.

    ITEMPARAMETER DESCRIPTIONUNIT
    TFT seriesTFT-H011A1QCIST3N10
    Diagonal size1.1”Inch
    Resolution135x240Dot
    Dimensions13.50x27.95x2.03mm
    Active area (AA)14.8635x24.9120mm
    LCD type1.1” TFT Modulemm
    Display viewing angleFull View
    Aspect ratio1:2
    Backlight typeLED white
    TFT driver ICST7789H2
    Brightness350cd/m2cd/m2
    Operating temperature-20~70℃
    Storage temperature-30~80℃
