    Stainless Steel High Low Temperature Test Chamber Environmental Test Chambers

    Ask Lasest Price
    Brand Name : Neide
    Model Number : ND-408
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 100sets/month
    Delivery Time : 7-22 work days
    • Product Details
    • Company Profile

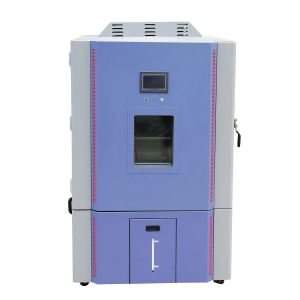

    Stainless Steel High Low Temperature Test Chamber Environmental Test Chambers

    Temperature Extremes Chamber For High-Low Testing

    Product Description:

    The High - Low Temperature Test Chamber represents a state - of - the - art environmental conditioning system, renowned for its precision and durability. This advanced chamber is engineered to deliver rapid and stable environmental conditions, covering a wide range of relative humidity from 5% to 98% R.H. with an accuracy of ±0.5% and temperature from a frigid - 70°C to a sweltering 150°C, also with an accuracy of ±0.5°C.
    The chamber's ability to precisely regulate humidity and temperature makes it an ideal choice for industries that require strict environmental conditions for product testing and sample conditioning. Whether it's simulating the arid conditions of a desert (low humidity) or the humid tropics (high humidity), or the extreme cold of polar regions to the intense heat of a furnace, the High - Low Temperature Test Chamber can accurately replicate these environments.

    Specification:

    Model

    ND-80
    (A~F)

    ND-150
    (A~F)

    ND-225
    (A~F)

    ND-408
    (A~F)

    ND-800
    (A~F)

    ND-1000
    (A~F)

    Inner size: WHD(cm)

    40*50*40

    50*60*50

    60*75*50

    60*85*80

    100*100*80

    100*100*100

    External size: WHD(cm)

    105*165*98

    105*175*108

    115*190*108

    135*200*115

    155*215*135

    155*215*155

    Temperature range

    (Low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) (High:+100℃/+150℃)

    Humidity range

    20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)

    Temp analytic accuracy/
    uniformity

    0.1℃/±2.0℃

    Temperature Fluctuation

    ±0.5℃

    Humidity analytic accuracy/ Humidity control accuracy

    ±0.1%;±2.5%

    Heat; cooling time

    Heat up about 4.0°C/min ; Cooling about 1.0°C/min

    Inner and outer materials

    SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer

    Insulation materials

    Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials

    Cooling system

    Air cooling/single segment compressor(-40°C) ,air and water double segment compressor

    (-50°C~-70°C)

    Protection devices

    Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,

    super humidity over-temperature protection switch, fuse, failure warning system

    Parts

    Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4

    Compressor

    Original France“Tecumseh”brand

    Controller

    Delta, Independent R&D software

    Power

    AC220V 50/60Hz & 1, AC380V 50/60Hz 3

    weight (kg)

    150

    220

    270

    320

    450

    580

    Company Information:

    Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

    Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

    At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

    This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
