JIS 5K 10K lever operation ductile iron butterfly valve
According to the connection type,butterfly valves can be divided
into the flange and the wafer.
JIS 5K 10K lever operation ductile iron butterfly valve Size
1.Production Size:1 1/2"~40".DN40~DN1000
JIS 5K 10K lever operation ductile iron butterfly valve standard:
1.Design Standard:KS B2813
2.Face to Face:KS B2306
3.Flange Standard:KS B1511
4.Testing Standard:KS B2304
JIS 5K 10K lever operation ductile iron butterfly valve Material of parts:
1.Body:FC20,FC25,FCD40,FCD50
2.Stem:2Cr13/SUS304/SUS316/Carbon Steel
3.Disc: FCD40,FCD50,SUS304,SUS316
4.Gasket:NBR,PTFE,EPDM,Teflon
5.Seat:NBR,EPDM,PTFE,RPTFE
6.Packing:NBR,PTFE,EPDM,Teflon
7.Handle: FCD40,FCD50/ malleable iron

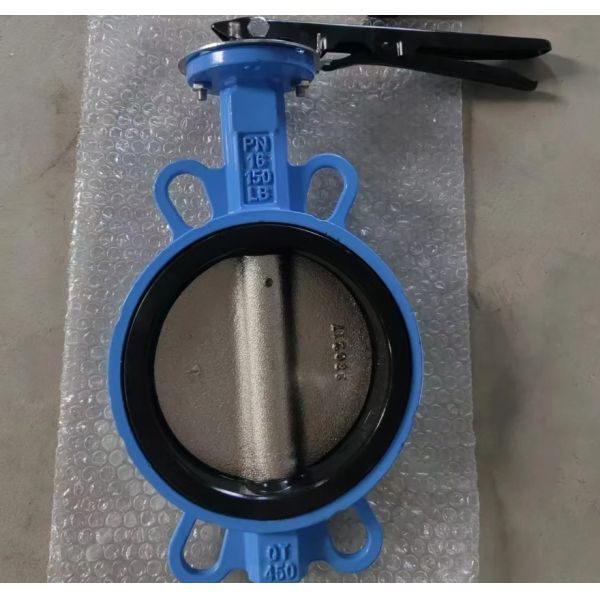

Product show
