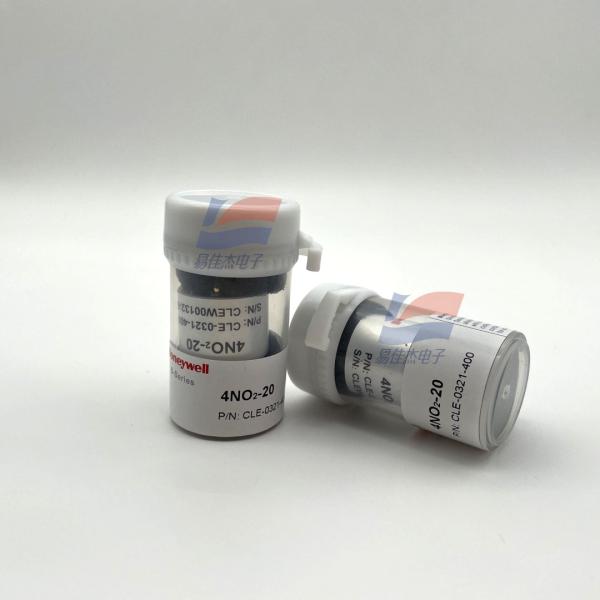

YJJ 4NO2-20 CLE-0321-400 Nitrogen Dioxide Electrochemical Sensor

Product Description:

4NO2-20 CLE-0321-400 Nitrogen Dioxide Electrochemical Sensor

Features:

Performance Characteristics

electrochemical gas sensor is a microfuel cell original, but it is developed on the basis of the original oxygen sensor. It has been successfully developed because of low power consumption, good selectivity, high sensitivity and low efficiency. The main design features of the electrochemical gas sensor are capillary adsorption of liquid electrolyte, small holes limit gas diffusion, so that all target gases can reach the electrode surface and react with it

Performance characteristics:

Load 2000ppm

Sensitivity 0.02±0.01A/ppm

Baseline (20oC)<±0.2a

Baseline drift equivalent to 0to10ppm(-20oCto50oC)

Resolution 10ppm

Response time (T90)70 seconds

linearity

Long-term stability <2% signal value/month

Working condition

Operating temperature -20o

Cto50oCWorking humidity 15to90%RH (non-condensing)

Working pressure 90to110kPa

Bias voltage 0mV

Storage time 6 months (in the box)

Storage temperature 0oCto20oC

Service life 2 years in the air

Physical property

It weighs about 5 grams
