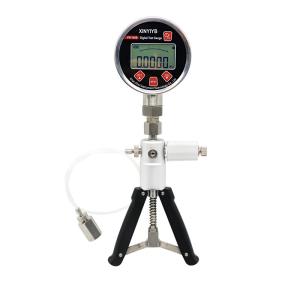

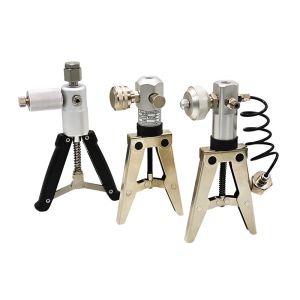

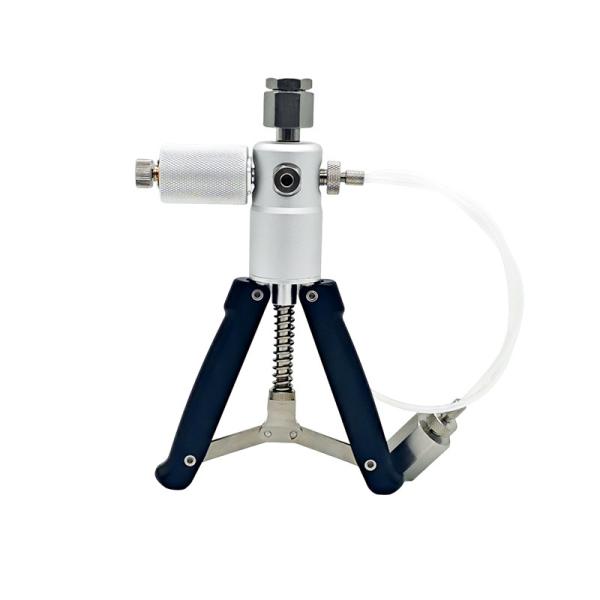

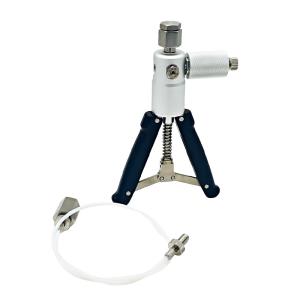

60Bar Hand Held Pneumatic Calibration Pump Clean Air Pressure Pump

60 Bar Hand-Held Pneumatic Calibration Pump Clean Air Pressure Pump

Hand pump pressure transmitter calibrator is a portable pressure pump. This pressure transmitter calibrator is for field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.This hand pump pressure calibrator also provide pressure source correction table for pressure measuring instrument manufacturer. The handheld pressure calibrator for all kinds of pressure transmitter within every 60 Mpa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump calibrator

Specification

Operation method

Pressure verification First, connect the tested meter to the output of the tested meter, and connect the standard meter to the output of the standard meter. Rotate the switch valve knob to push it out, and turn the pressure adjustment knob counterclockwise to close the pressure relief valve. Use the pressure handle to apply pressure to around 0.5-4MPa, and use the pressure adjustment knob to apply pressure to the desired level. When releasing pressure, simply open the pressure relief valve.

Vacuum calibration First, connect the tested meter to the output of the tested meter, and connect the standard meter to the output of the standard meter. Rotate the switch valve knob and press it in, then turn the pressure adjustment knob clockwise to close the pressure relief valve. Use the pressure handle to draw pressure to the desired vacuum value. When releasing pressure, simply open it.

Note

1. The device should be used within the rated pressure range as much as possible and should not be used beyond the range.

2. The pressure/vacuum conversion must be carried out in a non pressure state.

3. The calibration table should be placed on a stable operating platform to avoid entering environments with corrosive gases and dust particles.

4. If not used for a long time, the equipment should be stored in a dry, non corrosive gas environment;

5. Leverage pressure, apply even force, do not use force when closing or opening the valve.

6. Regularly clean the impurities inside the filter to prevent them from affecting the service life of the equipment.
