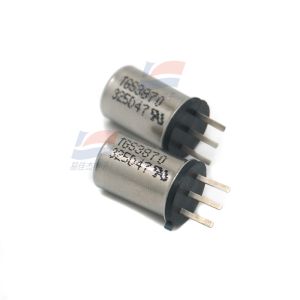

    YJJ TGS3870 Methane Carbon Monoxide Sensor (CH4/CO sensor) For Gas Alarms

    Ask Lasest Price
    Brand Name : FIGARO
    Model Number : TGS3870
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2200
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    YJJ TGS3870 Methane Carbon Monoxide Sensor (CH4/CO sensor) For Gas Alarms

    Product Description:

    TGS3870 Methane Carbon Monoxide Sensor (CH4/CO sensor) For Gas Alarm


    Features:

    figaro methane carbon monoxide sensor (CH4/CO sensor) TGS3870

    The TGS3870-B00 is a microbead semiconductor gas sensor for the detection of methane and carbon monoxide. Due to the use of a microbead gas sensing structure, through the heating of the sensor

    By applying a periodically varying high and low voltage, a sensor can detect both methane and carbon monoxide. Also, the gas sensing body is very small

    Small, heater power consumption only 38mW (average).

    The TGS3870-B00 is extremely durable due to its low sensitivity to ethanol vapor, a typical disturbing gas in residential environments, making it the ideal sensor for the gas alarm market.

    Two, Japan figaro methane carbon monoxide sensor (CH4/CO sensor) TGS3870 features:

    * Small size, low power consumption

    * Good selectivity and sensitivity to methane and carbon monoxide

    * Low sensitivity to ethanol vapor

    * Long service life, low cost

    Third, methane carbon monoxide sensor (CH4/CO sensor) TGS3870 application:

    * Methane, carbon monoxide composite alarm

    Four, methane carbon monoxide sensor (CH4/CO sensor) TGS3870 sensitivity characteristics (methane) :

    The figure below shows a representative sensitivity characteristic curve measured under standard test conditions (see back).

    The ordinate represents the sensor resistance ratio Rs/Ro, and the definition of Rs and Ro is as follows:

    Rs = Resistance value of the sensor in various concentrations of gas

    Ro = Resistance value of the sensor at 3000ppm methane


    Specifications:

    Methane detection range500-12500ppm
    Carbon monoxide detection range50-1000ppm
    Methane sensitivity (resistance ratio)0.44-0.7
    Carbon monoxide sensitivity (resistance ratio)0.3-0.8
