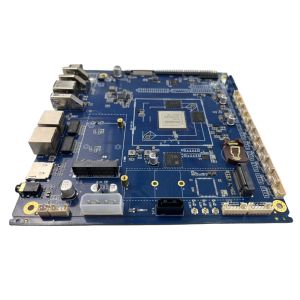

Rockchip Rk3588 Industrial ARM Board Octo Core Android 12 IOT AI
Dual Lan 8K DB H-DMI LVDS RS232 RS485 Mini Smart Motherboard
Description of JLD-I02 Industrial ARM Board:
JLD-I02 Industrial ARM Board is a motherboard used in industrial
motherboards and industrial control machines, etc. It adopts RK3588
processor, which is a high-performance, low-power consumption
octa-core application processor chip with a variety of powerful
embedded hardware engines built-in to provide excellent performance
for high-end applications.It supports almost full-format H.264
4k@60fps decoding, H.265 4k @60fps decoding, H.264/H.265
1080p@60fps encoding, and high quality JPEG encoding/decoding. The RK3588 has a built-in 3D GPU that is fully compatible with
OpenGL ES1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.0. The dedicated
hardware engine embedded with a high-performance 2D image
acceleration module will maximize display performance and provide a
smooth operating experience. The embedded 6TOPs NPU with tri-core architecture empowers all
kinds of AI scenarios, supporting int4/int8/int16/FP16/BF16/TF32.
In addition, with its strong compatibility, it can easily convert
network models based on a range of frameworks such as TensorFlow
/MXNet/PyTorch/Caffe. With a high-performance memory interface, the RK3588 is able to
provide the memory bandwidth required for high-performance
scenarios. (LPDDR4/LPDDR4X/LPDDR5) A full set of peripheral
interfaces are also available to support very flexible
applications.
Features of JLD-I02 Industrial ARM Board:
- Product Name: Industrial ARM Board
- Screw hole: diameter 4mm
- CPU: RK3588 Octa-core 4*Cortex-A76 + 4*Cortex-A55 With A Maximum
Frequency Of 2.8GHz
- PCB Size: 170mm*170mm
- SATA: SATA3.0 Interface
- 4G/5G: Support 4G/5G Network
Main parameters |
CPU | RK3588 octa-core 4*Cortex-A76 + 4*Cortex-A55 with a maximum
frequency of 2.8GHz |
GPU | ARM Mali-G610 MC4 Support OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1,1.2, OpenCL
1.1,1.2,2.0 |
NPU | 6 TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS(dual 8),EDP,MIPI,HDMI,VGA |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker
interface |
Ethernet | 10/100/1000M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 12/ Linux Ubuntu |
TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 sockets (5 pcs),external USB 2.0(2 pcs)external 3.0 HOST/OTG(1 pce) |
Serial port | 5 in total, optional types,TTL(1-5pcs),RS232(0-4pcs),RS485(0-2pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
PCB Size | 170mm*170mm |
Power supply | DC12V input |
Temperature | -20°-80℃ |
Applications:
The JLD-I02 RK3588 is a powerful and versatile industrial edge computing device,
suitable for applications such as industrial automation, AI-driven edge computing, digital signage,
and IoT gateways.
Support and Services:
Product Technical Support and Services for the ARM Android Board:
- Troubleshooting assistance for hardware and software issues
- Firmware updates and patches
- Documentation and user guides
- Community forums and knowledge base
- Training resources and tutorials
FAQ:
Q: What is the brand name of this ARM Android Board?
A: The brand name is JEWELLED.
Q: What is the model number of this ARM Android Board?
A: The model number is JLD-I02.
Q: Where is this ARM Android Board manufactured?
A: It is manufactured in China.
Q: What is the minimum order quantity for this ARM Android Board?
A: The minimum order quantity is 1 piece.
Q: What is the price range for this ARM Android Board?
A: The price ranges from US$125 to US$175.
