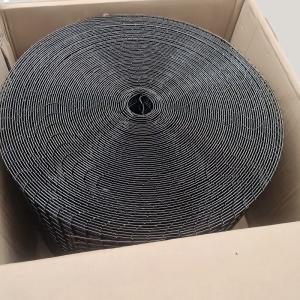

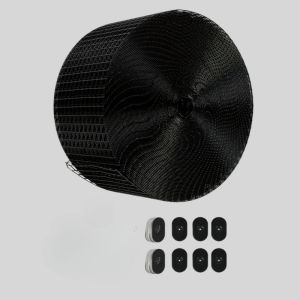

8 Inch 100ft Solar Panel Bird Mesh Roll
Quick details of 8 Inch 100ft Solar Panel Bird Mesh Roll
Material: Galvanized steel wire
Color: Black
Process: Spray Coating
Gross Weight: 7kg / 15.43lbs
Net Weight: 6.5kg / 14.33lbs
Package Size: 31x31x22cm / 12.2x12.2x8.66in
Product Length: 100ft / 30.5 m
Product Wideness: 20.3cm / 8in
Mesh Size:1.27 x1.27cm / 0.5 x 0.5in
Wire Diameter: 1.3mm / 0.05in
Description of Solar Panel Bird Mesh Roll
To prevent animals from damaging solar panels and causing costly
repairs, you need this solar panel bird mesh to help you protect
them. Made of iron and PVC coating, the bird mesh guard is
wear-resistant, weather-resistant, and sturdy, so it can guard the
solar panels for a long time.
Smooth Edges: The smooth edges protect from scratches during
installation giving you peace of mind.
Fasteners Clips: The fasteners allow you to attach and secure the
product easily. Corrosion-resistant, sturdy aluminum makes the
product durable and resistant to damage.
Common mesh size for Solar Panel Bird Wire Guard
| In Metric | In Imperial |
|---|
| Wire Diameter | 0.7/0.8/0.9/1.0/1.1/1.2 mm | 16Ga., 19Ga. |
| Mesh Opening | 12.7 × 12.7 mm, 25.4 × 25.4 mm, 12.7 × 25.4 mm | 1/2" × 1/2", 1" × 1", 1/2" × 1" |
| Width | 0.1/0.15/0.2/0.23/0.25/0.3 m | 4", 6", 8", 9", 10", 12" |
| Length | 15/20/25/30 m | 50', 66', 82', 100' |
Common clips size for Solar Panel Bird Wire Guard
| Material | aluminum and aluminum alloy | Stainless steel |
| J hook size in common: | 2.4mmx100mm | 2.0mmx120mm |
| Surface treatment | phosphating | Polish |
| Solar panel clips including | J hook nails and self locking washers |
| Self locking washer size: | 29mmx31mm, 30mmx30mm, 30mmx60mm |
Calculating the necessary number of clips: Use 2 clips for the
short side of every exposed edge of a panel and 3 clips for the
long side of every exposed edge of a panel. |
Installation processing for fixing solar panel brid mesh
1. Cut the mesh to an appropriate size for your solar panel.
2. Use a piece of plywood to bend the solar panel bird mesh at a
45-degree angle so that it sits on the roof.
3. Attach a hook to the solar panel.
4. Place clips every 18inches.
5. Thread the hooks through the mesh.
6. Add a washer to the hook.
7. Slide washers down the hook.
8. Once all washers are added, slide them up against the solar
panel bird mesh to secure.
9. Cut the excess portion of the hooks just past the washers to
complete.
