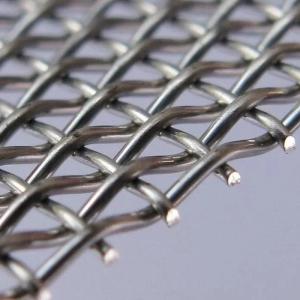

K500 Monel Wire Mesh For Marine Industries
Quick details of Monel Wire Mesh
Material: monel 400 and monel K500.
Weaving type: plain weave and twill weave.
Wire diameter: 0.0021" - 0.028".
Mesh size: 8 mesh to 200 mesh.
Description of Monel wire mesh
The Monel wire is a combination of Nickel and Copper making it one
of the most multipurpose and widely used nickel alloys. Monel comprises more than 60% of nickel content which offers intense resistance to a variety of corrosion
conditions including seawater, acidic and alkaline environments.
Compared to the common Stainless Steel Wire Mesh, The Monel wire mesh has a high melting point of 1300 F to 1350 F and strength superior to unalloyed nickel. Due to this unique
quality, it is being used inside high-temperature vessels and
petroleum applications.
Specification of Monel Wire Mesh
| Item | Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
|---|
| HHMN-01 | 8 × 8 | 0.0280 | 0.0970 | 60.20 |
| HHMN-02 | 10 × 10 | 0.0250 | 0.0750 | 56.30 |
| HHMN-03 | 12 × 12 | 0.0230 | 0.0600 | 51.80 |
| HHMN-04 | 20 × 20 | 0.0160 | 0.0340 | 46.20 |
| HHMN-05 | 30 × 30 | 0.0130 | 0.0203 | 37.20 |
| HHMN-06 | 40 × 40 | 0.0100 | 0.0150 | 36.00 |
| HHMN-07 | 60 × 60 | 0.0072 | 0.0090 | 30.50 |
| HHMN-08 | 80 × 80 | 0.0055 | 0.0070 | 31.40 |
| HHMN-09 | 100 × 100 | 0.0045 | 0.0060 | 30.30 |
| HHMN-10 | 120 × 120 | 0.0036 | 0.0047 | 32.26 |
| HHMN-11 | 150 × 150 | 0.0026 | 0.0041 | 37.20 |
| HHMN-12 | 200 × 200 | 0.0021 | 0.0533 | 33.60 |
The chemical composition of Monel K500 is mentioned below:
| Element | Content (%) |
| Al | 2.30 – 3.15 |
| C | .25 max |
| Cu | 27.0 – 33.0 |
| Fe | 2.0 max |
| Mn | 1.5 max |
| Ni | 63.0 max |
| Ti | 0.35 – 0.85 |
| S | 0.01 max |
| Si | 0.5 max |
Properties of Monel Wire Mesh:
Good weldability.
Good Resistance against corrosive conditions.
Can withstand high temperatures up to 1300 F.
Preventive against acidic and alkali media
Cleanability and reusability.
Application: Monel wire mesh is widely used in the following industries:
Industrial heat exchangers
Chemical and solvent industries
Deaerating heaters (To remove oxygen and other dissolved gases from
boiler feed water)
Hydrocarbon processing equipment
Distillation of petroleum crude
Marine, oceanic, and aerospace engineering
Fittings and fasteners of Valves, pumps, shafts, etc.
Fresh water and fuel tanks, boiler feedwater heaters
